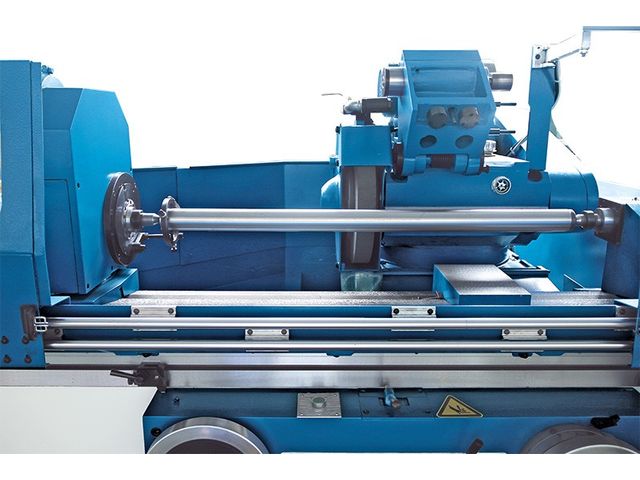

Large machine bed in a heavy design accommodates workpieces with lengths up to 2000 mm and diameters up to 320 mm
-
Wide, precision-ground guideways ensure maximum accuracy across the entire workpiece length and accommodate high workpiece weights
-
The table features large dimensions and swivels in two directions - table movement via hand-wheel or automatically via linear hydraulic feed
-
The robust feed valve allows very precise micro-feed control on the X axis, including a user-adjustable dwell time at the end of the longitudinal table travel
-
Hydraulic ratchet feed simplifies exact X axis positioning, limited by an adjustable zero stop, and repeated feeds by the push of a button
-
The adjustable grinding spindle features superior bearings and provides for maximum precision and surface quality, plus extraordinary tool life and rigidity
-
The grinding spindle motor provides up to 7.5 kW power and is designed for continuous operation
-
The heavy-duty spindle head swivels 30° to the left and to the right; the work spindle head swivels 45°
-
Standard inside grinder for grinding parts with diameters up to 100 mm
-
Integrated rapid feed on Z axis with manual return
Standard equipement : 2-axis position indicator, internal grinding equipment, open rest, closed rest, 3-jaw chuck Ø 200 mm, coolant system, grinding wheel dresser, balancing station, balancing mandrel, grinding wheel flange, grinding wheel, center point, front and rear splatter guard, drivers, operating tools, Bedienungsanleitung and test certificate.
