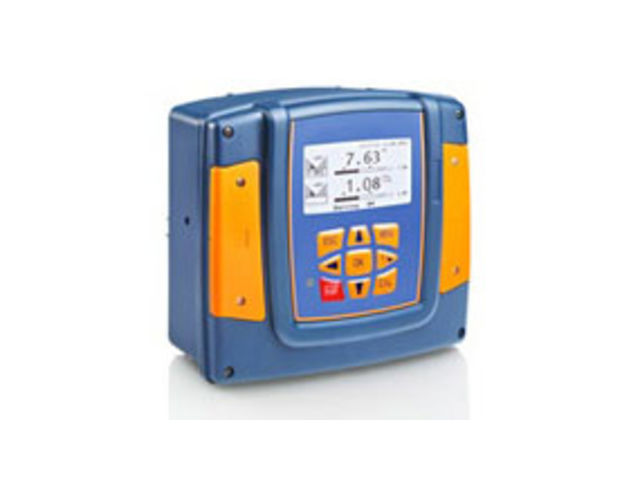

Controller DULCOMETER® diaLog DACa

This product is temporarily unavailable.
Think about consulting similar products.

Transparent water analysis with the DULCOMETER® diaLog DACa - all combinations of relevant water treatment sensors can be freely evaluated and all actuators controlled.

“ - Lower investment costs: through two independent PID controllers in one unit -Flexible selection and permits simple subsequent adjustments: 14 different measured variables per channel -Ready for the world - offers 24 operating languages -Transparency in troubleshooting: Event, calibration and measured data logger with easy-to-access SD memory card -Read for integration into your system: with various field bus systems, like PROFIBUS®-DP, PROFINET®, Modbus RTU and Modbus TCP ”

Ask for a quote

Presentation

Transparent water analysis with the DULCOMETER® diaLog DACa - all combinations of relevant water treatment sensors can be freely evaluated and all actuators controlled.

Technical features

- Standard equipment of the 1-channel design -Measuring channel 1 with 14 freely selectable measured variables (via mV or mA). The measured variables conductive or inductive conductivity are provided by the Compact controllers COND_C (conductive) and COND_I (inductive). -PID controller with pulse frequency-based metering pump control for 2 metering pumps. -2 analogue outputs for measured value, correction value or control variable (dependent on the optional equipment). -2 digital inputs for sample water fault detection, pause and parameter switch-over. -2 output relays selectable as limit value, cycle timer, real-time timer or intermittent programmable control output (depending on the optional equipment). -Measured variables and language selection during commissioning. -Temperature compensation of the pH, chlorine dioxide (CDP) and fluoride measurement via Pt100/Pt1000. -22 operating languages: all European languages as well as Chinese, Russian, Thai, Korean. -Saving and transfer of device parameterisation by means of the SD card.

Usage scope

industrial and process water treatment plants food and beverage industry schools, hotels or hospitals sprinkler irrigation water potable water circuits
