Control terminal with touch screen / panel-mount / HD1080 / VIA Unilog B8 Brand: WITTMANN BATTENFELD

Human machine interface

Ask for a quote

Presentation

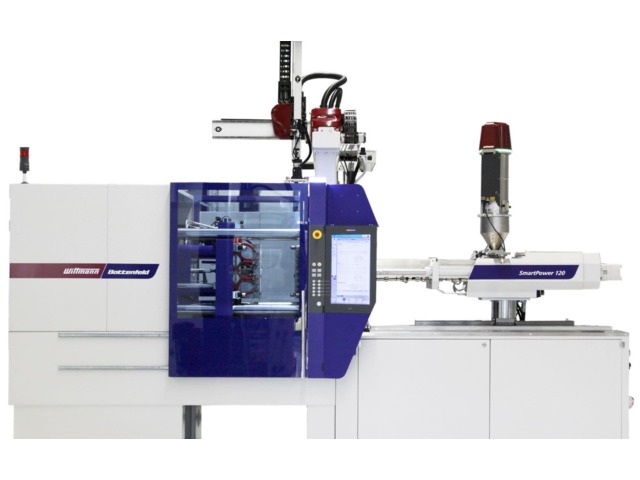

The new UNILOG B8 control system runs under the new Windows® 10 IoT operating system, which offers extensive capacities for process control. For this control system, the industrial PC integrated in the machine has been equipped with an intuitive touch screen interface. In addition to the pivotable monitor screen, a user-friendly manual operating panel is integrated in the machine`s central console.

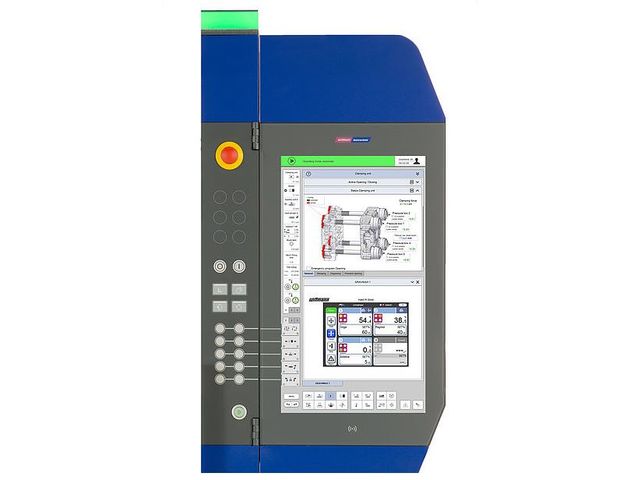

UNILOG B8 comes with a highly self-explanatory operating logic, similar to that of modern communication equipment. The operational functions can be controlled by haptic keys, the process functions can be retrieved via a pivotable 21.5" full-HD touch screen display by gesture control (wiping/zooming), with access via RFID, a key card or a key ring.

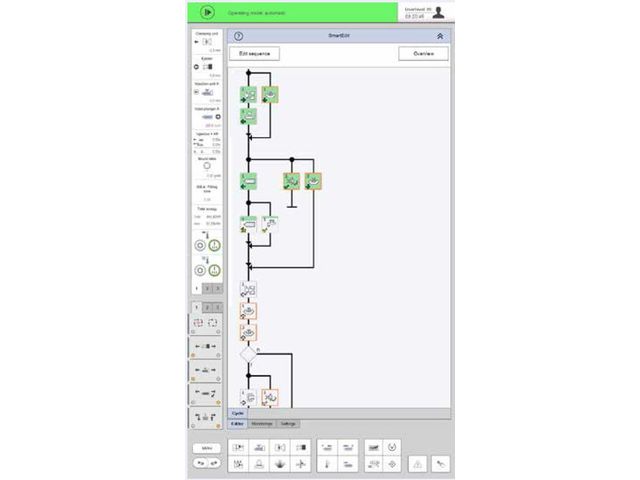

The status of the machine and/or the integrated robots and peripheral equipment is displayed in a colored status bar and by pop-up menus as well as a set of colored "traffic lights". Fast initial machine setting is possible with the QuickSetup program. Moreover, a comprehensive help library is integrated in the control system. The monitor screen display, which can be partitioned, enables simultaneous visualization of two different functions.
