Conical gear in POM C

Toothed coupling

Ask for a quote Receive Documentation Contact the supplier

The bevel wheels work in pairs at the ratio indicated in the table.

All of these two wheels form a gear.

- Since thermoplastic materials have a much greater coefficient of thermal expansion than steel, the following dimensions must be taken into account when mounting:

- Vacuum at the bottom of the tooth Sk = approximately 0.25 x module.
- clearance between teeth Sc = approximately 0.05 x module.
- coefficient of thermal expansion 1.1 × 10 -4 / ° C.

How to choose your gear ?


For a ratio of 1: 1 and a number of teeth of 16 choose 2 times the ref A1-234-16-05-1.

For a ratio of 2: 1 and a module of 1 choose refs A1-234-15-10-2 and A1-234-30-10-2

Material

- POM C.
- Right tooth.
- Pressure angle: 20 °.

On demand

- Available with smaller bores and keyways.


OTHER PRODUCTS TOOTHED COUPLING FROM MICHAUD CHAILLY

Cylindrical wheels with straight teeth and steel racks

Cylindrical wheels with straight teeth and steel racks

 Ask for a quote
Precision straight cylindrical spur wheels

Precision straight cylindrical spur wheels

 Ask for a quote

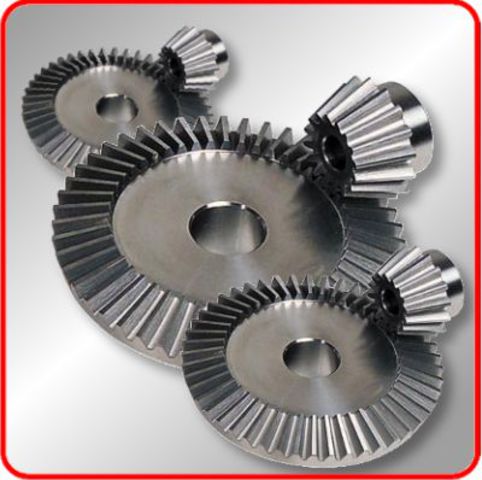

Stainless steel bevel gear
