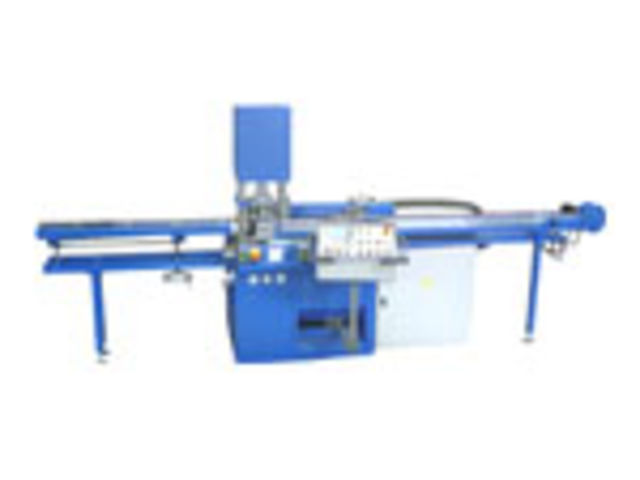

CNC Hydraulic punching machine : HPMR-A

PRODUCTS (9)
CATALOGUES
WHITE PAPERS
PRESS RELEASES

Ask for a quote

Presentation

It is suitable also for big batches and for tubes with bigger number of holes. Only for same size holes and also for different pitch holes.

Tolerance for pitch holes is up to 0,2 mm. the tolerance for distance between first and last hole is up to 0,5 mm.

The extending adapter and the centering of tube before each stroke reduce the size of deformation to minimum, it enables easy feed and it makes the punching of tubes with low quality and with big manufacturing tolerance easier.

The difference in comparison with HPM-M type – programmable automatic feed, the possibility of programming of pitch holes, hydraulic clamping, whole cycle of punching is automatic.

Ordinarily delivered for following tube lengths:
2.000 mm
3.000 mm
4.000 mm
6.000 mm
