Chlorine Dioxide Plants Bello Zon® CDKc

This product is temporarily unavailable.
Think about consulting similar products.

“ - Cost saving through minimal acid consumption - Cost-effective operation by the use of inexpensive concentrated output chemicals - Efficient operation, thanks to production, metering and monitoring of ClO2 with just one system - Maximum operating safety and purity of the CIO2 produced through the use of PVDF reactors - Integrated measuring and control technology - Perfect quality management, thanks to integrated storage of all operating parameters and measured values ”

Ask for a quote

Presentation

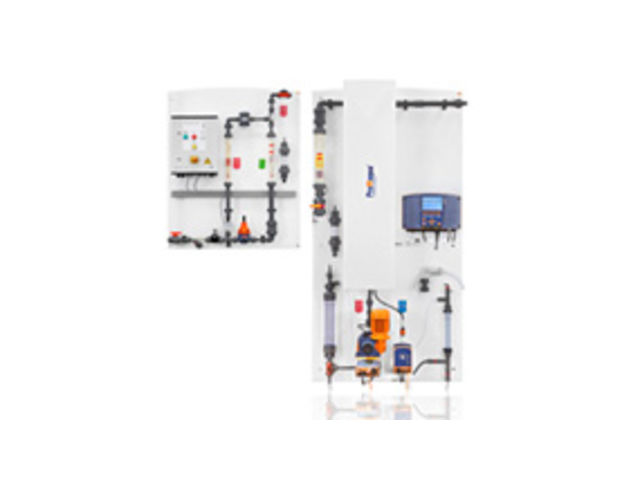

Chlorine dioxide system for continuous production, metering and monitoring of chlorine dioxide with concentrated chemicals. Bello Zon® CDKc is a ready-to-use convenient system with integrated intrinsically safe predilution station.

Technical features

Power supply 100-230 V, 50/60 Hz 2 freely configurable analogue inputs (0/4-20 mA) 7 digital inputs for monitoring 1 digital input for contact water meter 0.25-20 Hz 1 frequency input for water meter 10-10,000 Hz 1 operating signal relay 1 alarm signal relay 1 warning signal relay Mains output for controlling the bypass pump 1 freely configurable analogue output (0/4-20 mA)
