SCHERMESSER

Chain conveyor for pallets

Pallet chain conveyor

“ This conveyor can be integrated into an existing pallet handling line. It is also possible to integrate this conveyor in a new handling line. This chain conveyor is fully automated thanks to its electric motor. ”
Ask for a quote Receive Documentation Contact the supplier

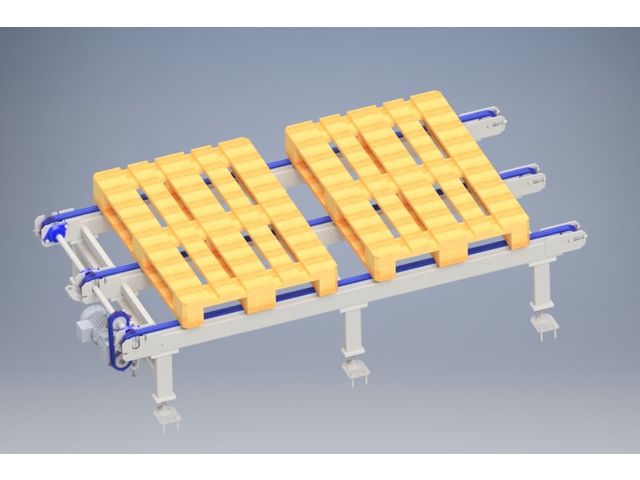

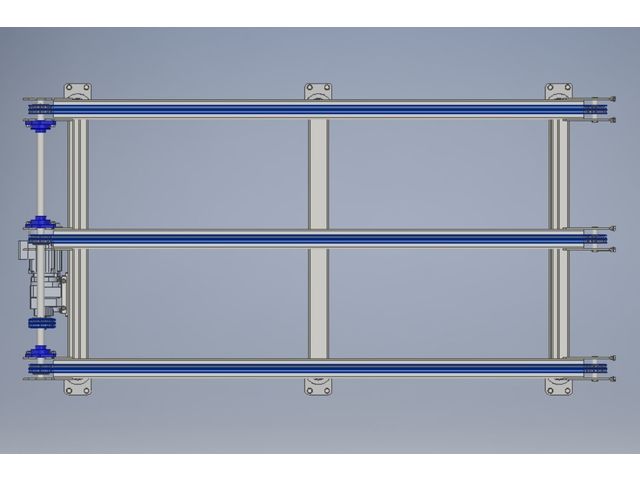

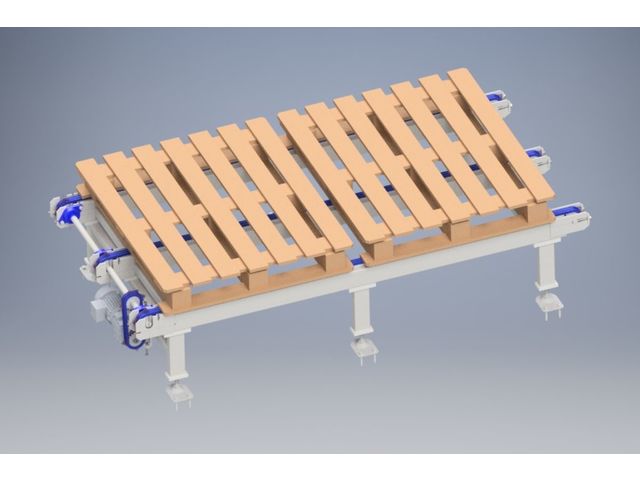

Motorized chain conveyor with frame, support legs adjustable in height by screw jack.

This chain conveyor is part of our range of stadarized conveyors. It allows the movement/conveying of goods on pallets, up to 1200kg per pallet.
The chain conveyor can transport pallets of the following dimensions: 1200*800mm and 1200*1000mm

Dimensions of chain conveyor: 1400*1050mm | height 500mm
It can transport two pallets at a time.

Frame :
- Metal frame made of folded plate, thickness 40/10th
- Supporting feet adjustable in height by screw jack

Chains :
- 3 chains
- Chain type 10b2 double
- Pitch 525mm

Drive :
- Fixed speed gear motor placed under the device, 230/400 V TRI (IP 55)
- Fixed speed: 12m/min


Electrical:
- Without electrical control equipment, except for the geared motor.


Load capacity per pallet : 1200 kg

REF : CC287016

Download the complete technical features
