Cera UltraStrap_R - Automatic assembly of bra straps

Textile machinery, Machines for the clothing industry

Leveling foot for 6 mm slot profile (M6) Compatible with 5mm diameter core holes (threading required) Dimensions in mm (see drawing) M = M6 A = 40 L = 51 D = 30 E = 5.4 l1 = 4 l2 = 5 B = 10 t = 1.6

“ To assemble complete straps in automatic (Slide + Ring). ”

Ask for a quote

Presentation

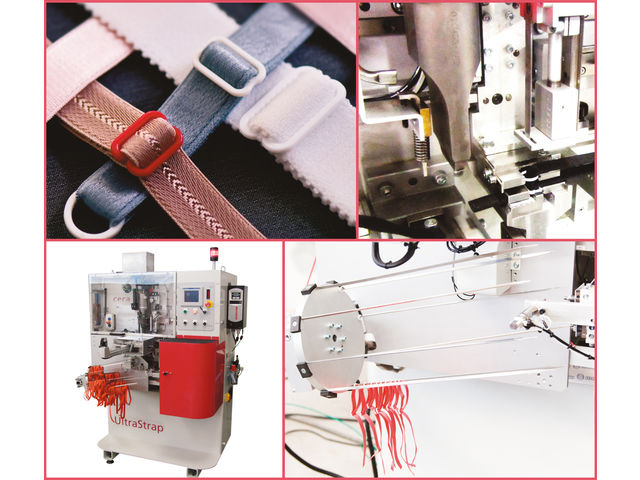

To assemble complete straps in automatic with a strap collector at the exit of the machine (Slide + Ring).

Automatic process
. Put-to-length of the elastic ribbon
. Threading of the slide and ring on the ribbon
. Ultrasonic welding of the ribbon around the slide axis
. Ultrasonic cutting of the ribbon

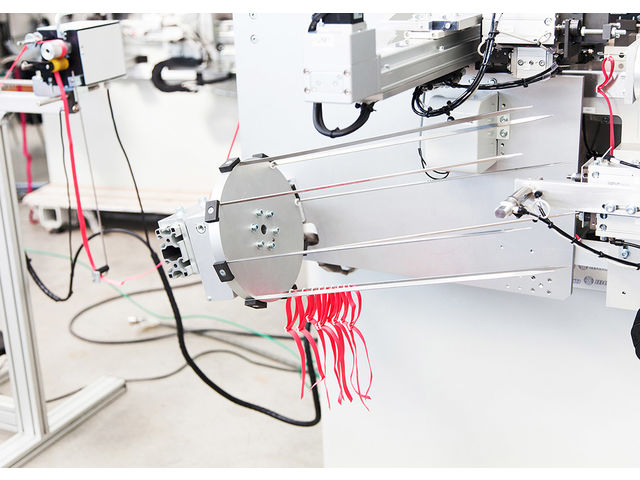

. A strap collector at the exit of the machine
. Trouble shooting through touch-screen

Technical features

Max. length 610 mm / Min. length 210 mm Max. width 24 mm / Min. width 8 mm (length up to 710 mm and width of 6 mm available upon request) Production rate : up to 500 pieces per hour for a 400 mm long strap Sonics : 30 kHz, 1500 W Pneumatic : 6 bars Electrical tension : 220 V single phase, 50 or 60 Hz Air consumption : about 280 litres / min Dimensions of the machine (in m) : 2,00 x 0,80 x 1,90 (h x w x L) Weight of the machine : 550 kg
