DESCRIPTION

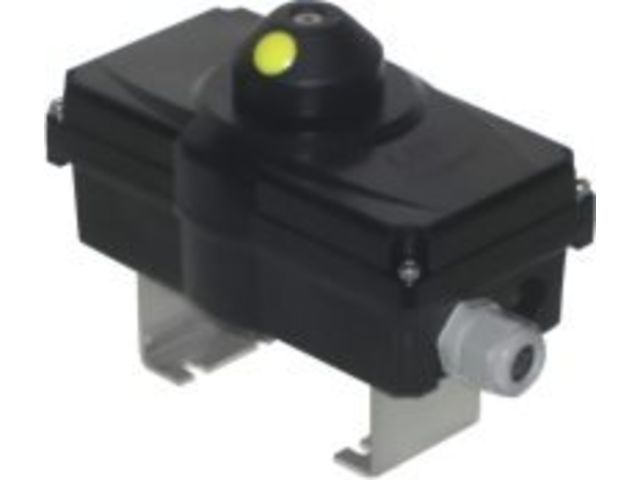

- Limit switchbox with 2 mechanical switches. Rotary position indicator for valves and actuators. Built in pneumatic control.
CERTIFICATION
- Marking : homologation CE
BOX
- Materials : Cast aluminium, epoxy paint
- Size : 225 x 110 x 108.5mm
- Weight : 2.5 kg with bracket
- Ingress Protection : IP 65
- Temperature of service : -20°C < T amb < +40°C
- Position indicator : On the top
- Mounting : ISO F05
- Bracket : NAMUR shaft and bracket stainless steel, compliant VDI/VDE 3845
SWITCHES
- Mechanical : CHERRY, CROUZET, ...
- Voltage : Depends on microswitch
- Function: SPDT, DPDT
- Switching : By adjustable cams
PNEUMATIC CONTROL
- 1 or 2 solenoids
- Connection : 1/8 G, push-in fittings supplied
ELECTRICAL CONNECTION
- Terminal block
- Conduit entry : M20x1,5
- Cable gland polyamide input for 8 to 12 mm cable
OPTIONS
- Additional cable gland
- Cable gland in other material
- Other fittings on request
- Mounting bracket for manual valve
