Carrier Ethernet SWCED-2316

Switches

Ask for a quote Receive Documentation Contact the supplier

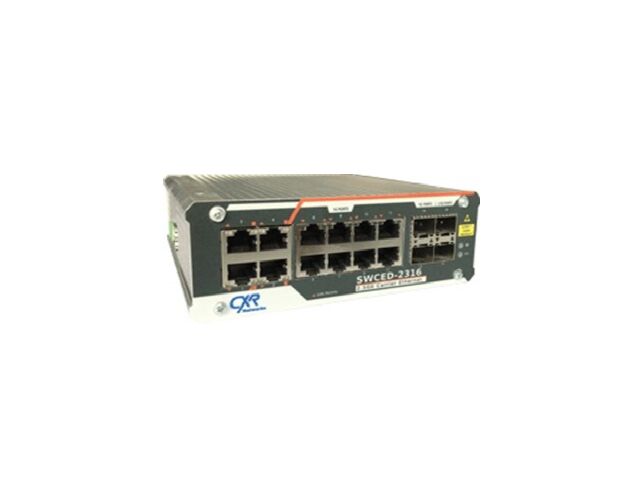

SWCED-2316 is a ruggedized Gigabit Ethernet switch and Ethernet Demarcation Device that provides 4x 2.5GE SFP ports, 8x Gigabit and 4x Gigabit POE+ ports with IP v4/v6 switching and MEF CE 2.0 Carrier Ethernet services.

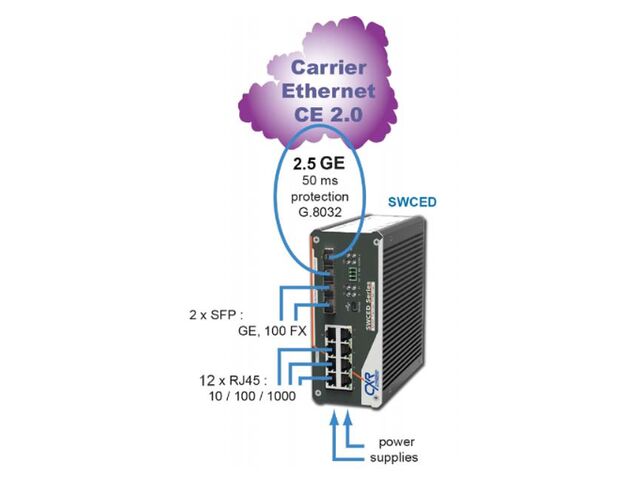

SWCED-2316 is a ruggedized Gigabit Carrier Ethernet switch and EDD in a DIN rail format that provides 4x multi-rate 2.5GE / GE / 100FX SFP slots, 8x Gigabit Ethernet RJ45 ports and 4x Gigabit POE+ ports.

SWCED-2316 provides high connectivity to industry substation or cabinets including 4x POE+ ports for IP camera, IP phone and other POE feeding requirements.

SWCED-2316 delivers a high level of security and availability to mission critical networks that require high immunity against extreme temperatures and electromagnetic disturbances.

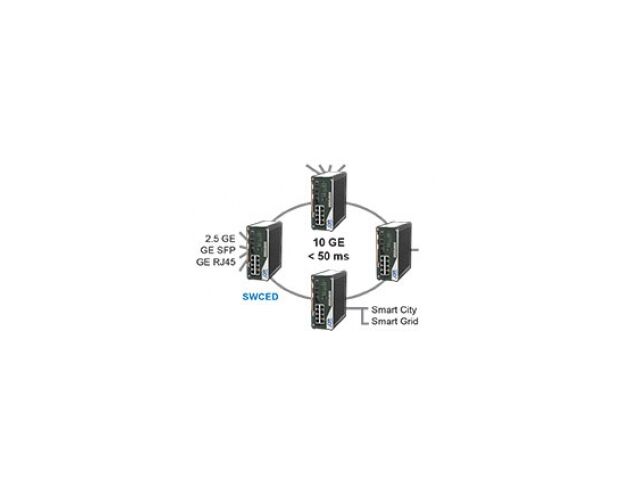

SWCED-2316 enables higher bandwidth upscales at lower cost with 2.5 Gigabit uplink capacity. It provides MEF CE2.0 Carrier Ethernet services with strong SLA / QoS and G.8032 Ring Protection but also many security features such as 802.1X authentication and ACL rules.

SWCED-2316 is a compact product with low power consumption and Green Ethernet features. It offers many unique features such as Ethernet cable diagnostics that drastically reduces OPEX.

SWCED-2316 is based on last generation Ethernet communication processors and ASIC. It embeds a number of hardware accelerators for wirespeed Ethernet switching and Operation And Maintenance traffic control (OAM). This Service-Aware Architecture provides the SWCE with best performance whatever traffic load and system configuration especialy with large number of VLAN's, ACL rules, Ring protection instances and OAM services.


SWCED-2316 protects your investments with a future-proof solution. With a budget similar to a standard Gigabit product it brings strong benefits :
  • 4x optical SFP ports support 2.5 Gigabit rate on a Carrier Ethernet platform for unequaled performances,
  • MEF CE2.0 (EVC, OAM) functions can be activated by a software license when new required are raised.

With that cost effective approach, you get a very high performance equipment that suits both current and future requirements.

MEF CE2.0 Carrier Ethernet functions give Operator class services and many advantages compared with other technologies :

  • EDD Ethernet Demarcatin Device with 4x NNI interfaces and 12 UNI interfaces with POE+
  • Managed services for point to point and multipoint connections with E-LINE, E-LAN and E-TREE topologies
  • Availability, throughput, latency, QOS are firmly controlled to meet strong SLA
  • Native Ethernet standards for security - authentication, ACL
  • High performance and cost effective technology with easy access to technical skills and resources
  • Native standards for traffic management and Operation And Maintenance functions - OAM
