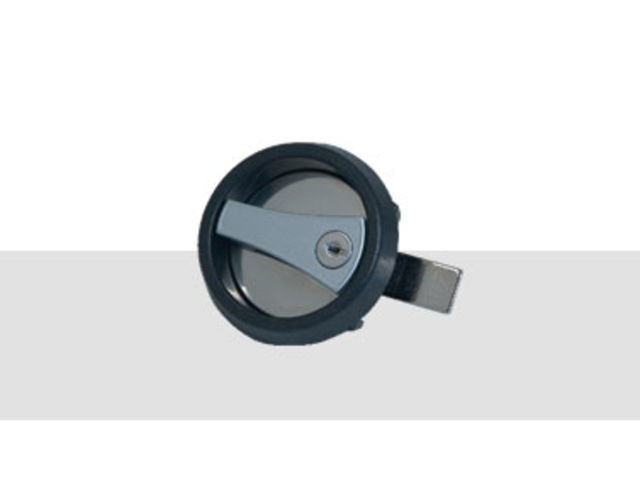

Die-cast zinc housings in multiple lengths, matched with a wide range of cam styles, sizes, and offsets, offer a substantial range of installation and operating solutions for cam locking applications. Separate component ordering minimizes inventory investment while offering maximum flexibility for latch configuration and key coding.
Standard size satisfies grip requirements ranging from 1.6 mm (.063) to 57.2 mm (2.25)
Mini size satisfies grips as little as 21.5 mm (.85) tall, with just 14.9 mm (.59) diameter flange exposure on the front panel, and as little as 16.4 mm (.65) cam protrusion from centerline
All models on the mini size accommodate panel thicknesses up to 7.5 mm (.30)
Sealed models meet NEMA-4 and IP-66 water intrusion standards
Removable core option provides exceptional keycode flexibility
Uses same key codes as other Southco latch styles for convenience throughout an installation
Delivers smooth, consistent operation, with a noticeable detent to indicate positive engagement
Fulfills a range of access control requirements – with hand- tool-, or keylock-actuation
Available in clockwise and counterclockwise rotation for left- and right-hand doors
Available Options
Sealed and non-sealed versions available for a variety of environmental conditions
Multiple key code and master key options provide versatility at point of installation
Multiple finish options and accessories provide a variety of aesthetic looks
Versatile mounting options suit application requirements
Standard cam rotation is 90 degrees, but 180 degrees option is also available
Latches can be shipped fully assembled for quicker, easier installation
Standards and Specifications
Shutter, sealing washer and internal O-ring result in locks meeting the NEMA-4 and IP-66 water intrusion standards
On standard sizes maximum ultimate load on cam is 180 N (40 lbf)
On mini sizes maximum static load on cam is 160 N (35 lbf)
Industry Applications
Electronics Enclosures
Furniture
HVAC
Industrial Enclosures
Industrial Equipment
Medical Cabinets and Equipment
Recreation Vehicles
Transportation
Vending POS
