Cable protectors for vehicle crossing : COBRA Range

COBRA 26-2


Maximum load : 4,9 tons per tire (Tested on LNE report n°P145630)

2-channel cable protector Ø max. 26 mm.

Black elastomer and yellow hinged cover.

Elements of 1 meter, nestable by dovetails.

For all uses, even intensive ones.
Walk at a walk.
Do not fix to the ground (unless only pedestrians pass through).

Width : 245 mm
Height : 45 mm
Weight : 6 kg

Code PAC26B100

COBRA 32-2

Base in black rubber, yellow lid on hinge - For heavy-duty vehicles of 44 tons

Dovetail inserts to mainain an element to another (between same references)

- Gross weight: 6kg
- Length 1m x W 250mm x H 50mm
- 2 ducts 32x34mm
- 2 reflectors of each side

Code PAC32B100

COBRA 31-3:

Base in black rubber, yellow lid on hinge - For heavy-duty vehicles of 44 tons

Dovetail inserts to mainain an element to another (between same references)

- Gross weight: 7kg
- Length 0,9m x W 300mm x H 46mm
- 3 ducts 31x33mm
- 2 reflectors of each side

Code PAC31C90

COBRA 31-3:

Base in black rubber, yellow lid on hinge - For heavy-duty vehicles of 44 tons

Dovetail inserts to mainain an element to another (between same references)

- Gross weight: 13kg
- Length 0,9m x W 510mm x H 55mm
- 4 ducts : 2 canaux 31x50mm + 2 ducts de 31x49mm
- 2 reflectors of each side

Code PAC31D90

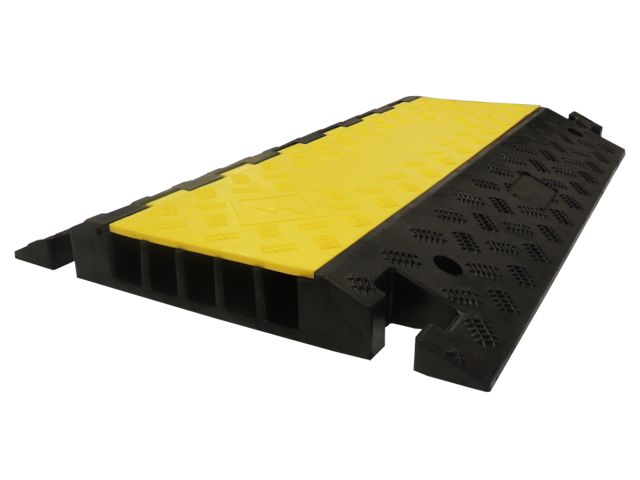

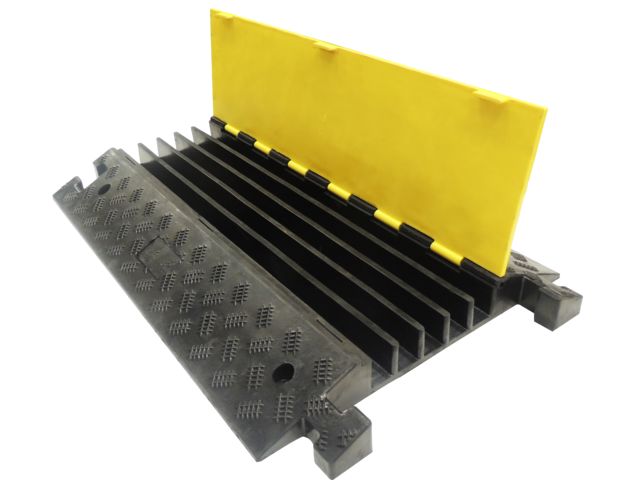

COBRA 38-5 :

Economic and strong

Base in black rubber, yellow lid on hinge - For vehicle crossing 20 tons

COBRA 38-5 could be set on the ground thanks to 4 whole into the base - Fastening pin available on demand PAFIX4 (1 box of 4 pin needed per element).

Dovetail inserts to mainain an element to another (between same references)

- Gross weight: 22kg
- Length 0,89m x W 580mm x H 75mm
- 5 ducts: 3 ducts 38x52mm + 2 ducts de 36x52mm
- Option Setting on ground:  PAFIX4

Code PAC38E89

COBRA 50-3:

Base in black rubber, yellow lid on hinge - For vehicle crossing 20 tons

COBRA 50-3 could be set on the ground thanks to 4 whole into the base - Fastening pin available on demand PAFIX4 (1 box of 4 pin needed per element).

Dovetail inserts to mainain an element to another (between same references)

- Gross weight: 23.5kg
- Length 0,89m x W 590mm x H 80mm
- 3 ducts: 2 ducts 50x67mm + 1 duct de 50x54mm
- Option Setting on ground:  PAFIX4

Code PAC50C89

COBRA 82-2:

Rigid models for vehicles’ crossing.

Base in black rubber, yellow lid on hinge - For vehicle crossing 20 tons

COBRA 38-5 and COBRA 50-3 could be set on the ground thanks to 4 whole into the base - Fastening pin available on demand PAFIX4 (1 box of 4 pin needed per element).

Dovetail inserts to mainain an element to another (between same references)

- Gross weight: 27.80kg
- Length 0,90m x W 615mm x H 105mm
- 2 ducts : 1 duct 82x97mm + 1 duct de 82x91mm

Code PAC82B90
