CA1860 - CA1862 infrared thermometers

Infrared thermometers

“ Compact and rugged due to its 3-metre fall resistance and IP65 ingress protection Excellent metrological performance Wide dynamic range for measurement: -35 °C to +650 °C (CA1862) Dual LASER sight (CA 1862) for precise targeting of the test area Configurable high and low alarms ”

Ask for a quote

Presentation

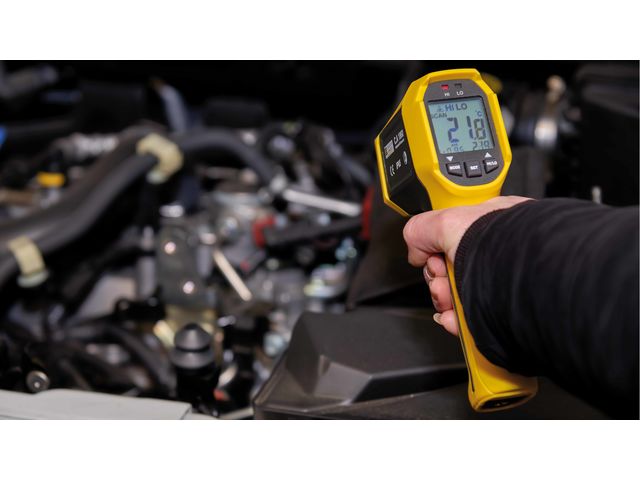

To locate all the areas of overheating in just a few seconds, , these ergonomic thermometers have been specially designed to be particularly simple to use.

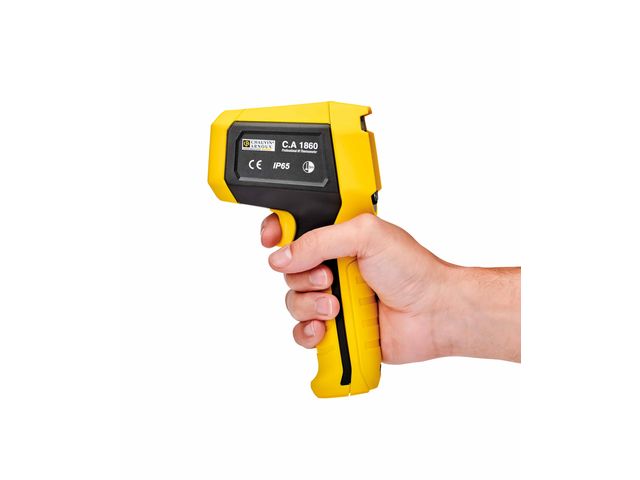

The pistol-shaped casing also makes them exceptionally comfortable to handle.

All the functions are accessible with just one hand.

Thanks to the laser sight and its flexible use, users can point at the centre of any target without any possibility of error.

The results are then displayed on the backlit LCD screen.

Technical features

Wide measurement range: – 35 °C à + 650 °C (CA1862) Wide measurement range: – 35 °C à + 450 °C (CA1860) Accuracy: ≥ 0° C : ± 1.8 °C or ± 1.8 % of reading (take the higher value) / < 0 °C : ± (1.8 °C + 0.1 °C / °C) Distance/spot ratio : 10/1 (CA1860) - 12/1 (CA1862) Emissivity : adjustable from 0.1 to 1.0 Dual laser (CA1862) - Single laser (CA1860) High and Low alarms Measurement functions : Instantaneous mode, MAX, MIN, AVG, differential (DIF), continuous measurement by locking the measurement trigger, alarms

Download the complete technical features
