Steam boiler

Ask for a quote

Presentation

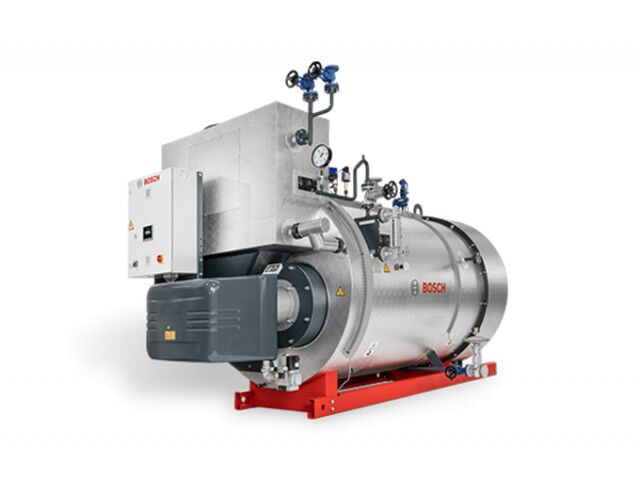

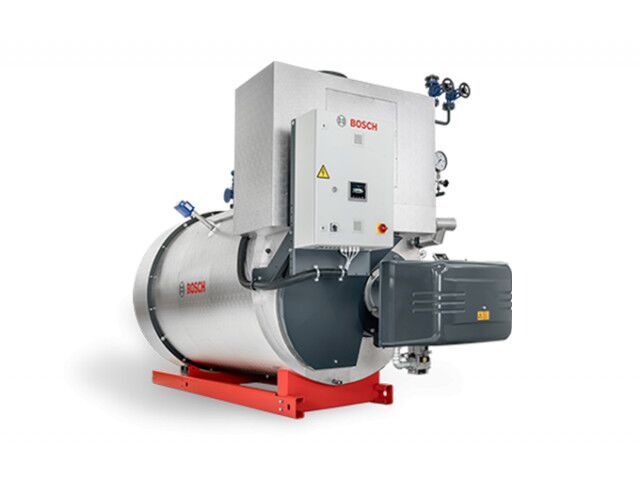

The Bosch CSB Dampfkessel offers a wide performance range from 300 to 23,600 kg/h at pressures of 0.5 to 16 bar and meets the strict emission requirements of the MCPD Directive (EU) 2015/2193. The compact boiler is ideal for industrial and commercial process heat applications (e.g. food) and offers a reliable supply with consistently high steam quality.

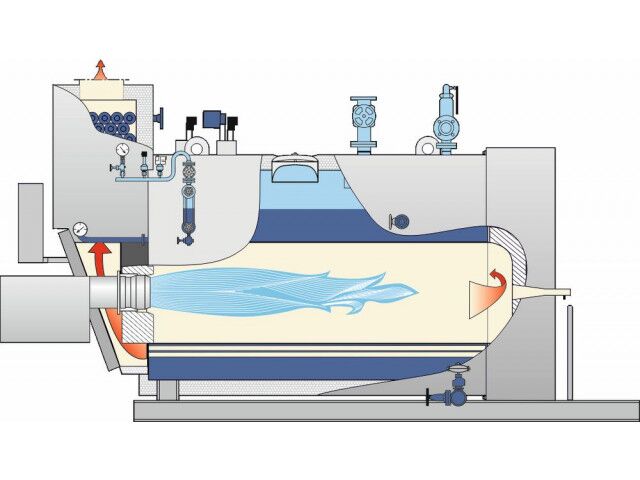

Thanks to the integrated economiser and helical heat exchanger tubes, the CSB achieves high energy efficiency. With coordinated burners and controls, the steam generator fulfils strict emission limits. The compact boiler can be operated with natural gas, oil, biogas or up to 20% hydrogen or equipped with a multi-fuel firing system. Its innovative design with a telescopic reversing chamber facilitates maintenance and inspection. The intuitive boiler control CSC (up to 4 t/h) or BCO ensures convenient operation.

Technical features

Output (Low-pressure saturated steam): 300 to 4,800 kg/h Output (High-pressure): 300 to 23,600 kg/h Safety pressure (Low-pressure): up to 0.5 bar Safety pressure (High-pressure): up to 16 bar Max. temperature (Low-pressure): up to 110 °C Max. temperature (High-pressure): up to 204 °C Energy source: Gas, oil, bio gas, bio oil, up to 20 % hydrogen

Download the complete technical features
