Presentation

Portable, Two-Piece Low Temperature Blackbody Calibration Source with a Large Surface Area, 5 to 450°C

Advanced Energy's Mikron Calibration Source M315-HT series are infrared radiators used for calibrating and verifying the output signals of pyrometers, thermal imaging systems, heat flux measurement systems, or spectrographic analysis systems.

Temperature range: Ambient 5 to 450°C (9 to 842°F)
Manufactured and tested to meet rigid quality control standards
Excellent general purpose calibration

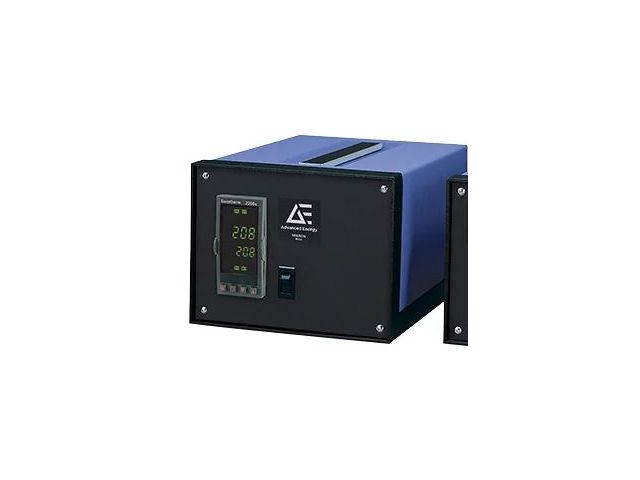

The Mikron® Calibration Source M315-HT is a two-piece portable blackbody calibration source with a digital indicating temperature controller that can be set at any temperature between ambient 5 to 450°C (9 to 842°F). Once set, the source temperature is controlled to within ±0.3°C by an internal RTD sensor. The unit has an emissivity of 1.00 at 8 to 14 µm.

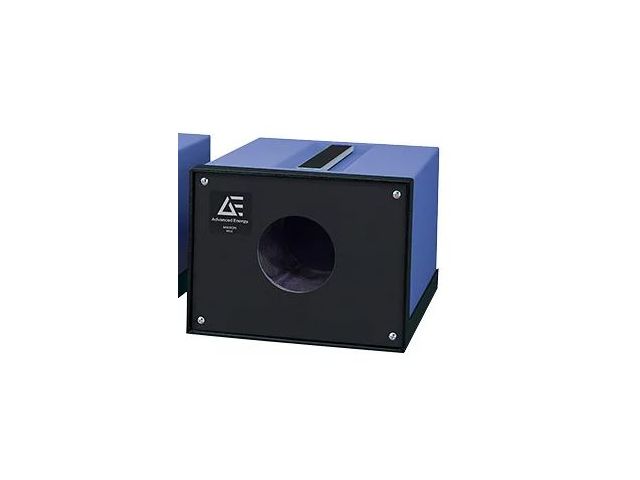

The M315-HT calibration source and the digital indicating temperature controller are contained in separate housings to allow greater flexibility in positioning the instrument within an installation (e.g. long path calibration).
