Biko - LM - WR

Industrial laminator machines

Ask for a quote

Presentation

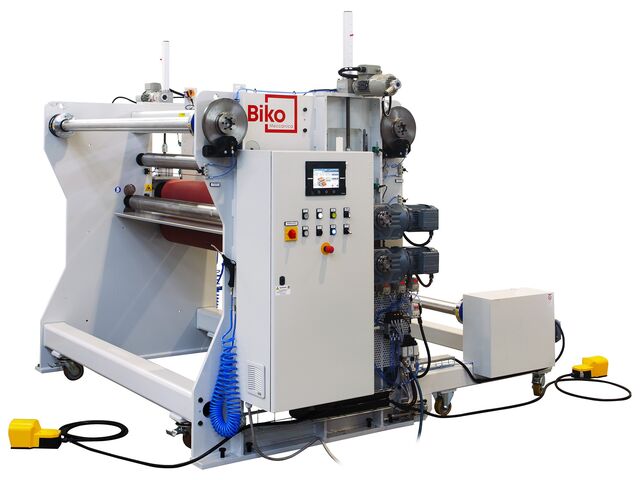

The LM-WR laminating machine is designed to laminate flexible materials like: foam materials, textile, rubber and plastic filmes with single or double-sided adhesive tapes. Multiple layers processing is as well possible. The machine can be configured with single or multiple unwinders, liner removal, slitter system, cross cutter, winders and tables for sheet format handling.

Technical Data

For web width up to 1600 mm

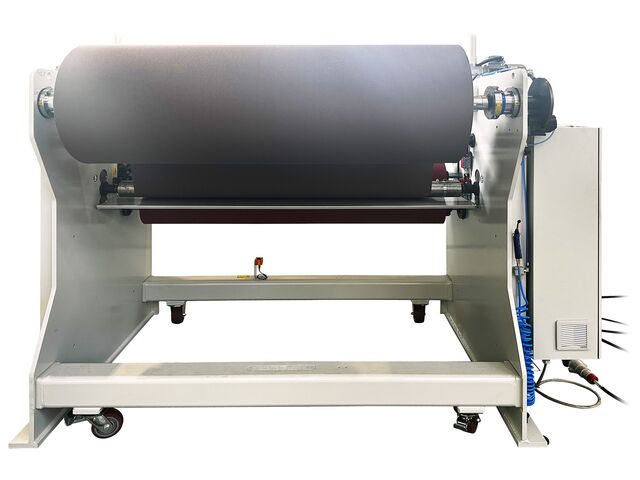

Main product unwinder for max roll dia. 915 mm (36”)
Adhesive tape unwinder for max roll dia. 400 mm (16”)
Unwinders equipped with pneumatic brake and sensor for roll dia. detection
Automatic brake pressure adjustment
Safety chucks for 50x50 mm square ends and pneumatic expanding shafts 3” dia.

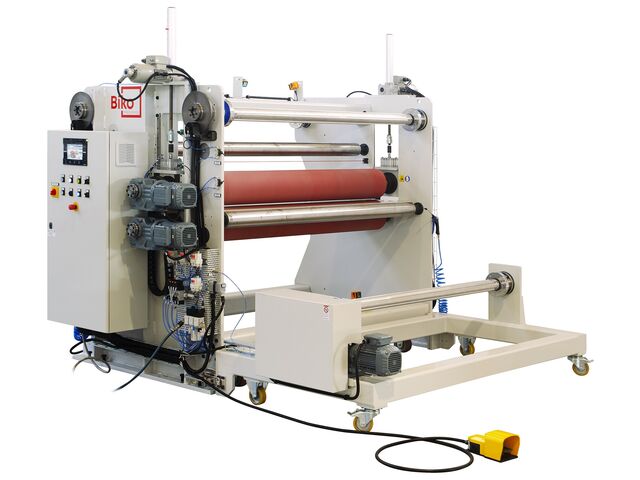

Lamination unit equipped with double rubber covered rolls, both motorized
Top roll vertical sliding to adjust lamination gap
Lamination rubber rolls are easy to remove for quick replacing and maintenance
Rewinder up to 36” dia. roll
Winding tension quick to adjust
Removable winder

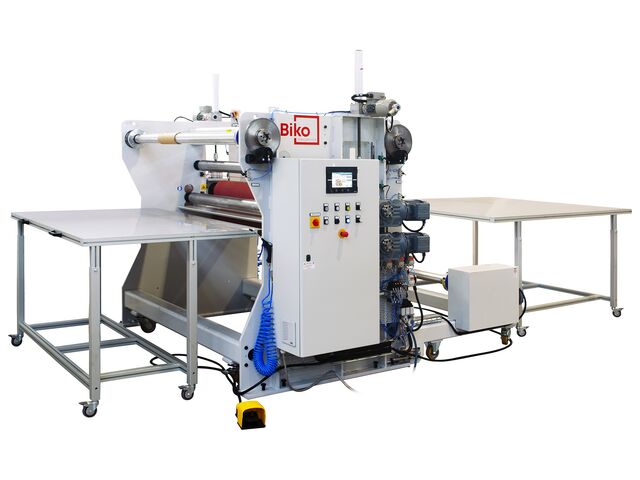

2 tables for material sheet processing
Up to 10 m/min linear speed
HMI for machine parameters control
The complete machine can be placed on casters

Usage scope

Foam Joint
