Bead Mill DYNO®-MILL Multilab

Dispersers

Two-piece case with high top and open side base. Fastenings pillars for PCB mounting. Version I: without handle bar. Supply: 1 top and base part, assembly kit and 4 screws for the mounting of PCBs.

“ Laboratory mill with unique flexibility: two grinding principles in one mill with the DYNO® agitator disc and the patented DYNO® ACCELERATOR. ”

Ask for a quote

Presentation

The name already says it all: This laboratory mill is remarkably flexible.

With this versatile machine you can vary grinding chamber size, material selection and grinding technology to an enormous extent. The DYNO^®-MILL MULTI LAB is the first choice for dispersing or grinding materials with a wide variety of properties and batch sizes.

Technical features

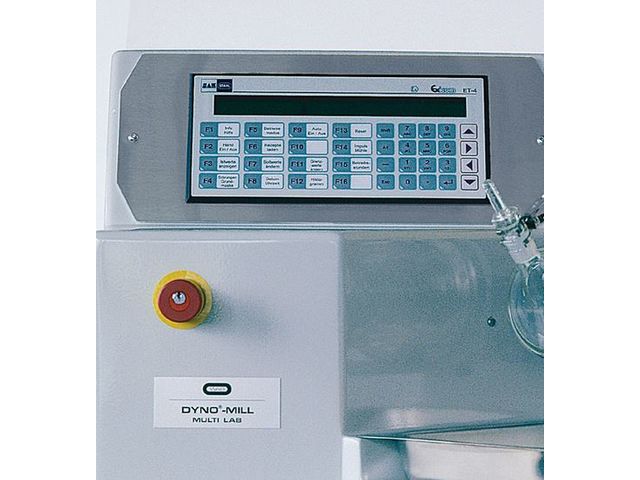

Ideal for very small batches in R&D with grinding chambers from 0.15 to 0.6 litres Suitable for small-scale production (particularly with the 1.4-litre grinding chamber) Discontinuous and continuous operation with one and the same laboratory mill Flexibility means that it is possible to scale up to all DYNO®-MILL production mills that employ the same principle. The ideal equipment for every product with an extremely wide choice of materials for wear parts that come in contact with the product – including hardened steel, stainless steel, zirconium oxide, silicon carbide, polyurethane, polyamide Guaranteed long service life and metal-free grinding thanks to the use of high-quality engineered ceramics Low process volume and ideal cooling properties permit the processing of temperature-sensitive products Easy handling – all DYNO®-MILL MULTI LAB mills can be disassembled and changed to a different mill configuration in just a few steps Easy cleaning with a minimum of cleaning agent Acquisition and monitoring of process data with the modern WAB VIEW process control system

Usage scope

Chemistry - paint and varnish - printing colors Pigment paste and dyes - Inkjet inks Phytosanitary - ceramics - microelectronics Pharma products - cosmetics Food industry - paper - biotechnology
