Ball valves for compressed air, water and oil - Mini series

Ball valves for compressed air, water and oil - Mini series - SENGA sas

Ball valves for compressed air, water and oil - Mini series - Plug valves

Ball valves for compressed air, water and oil - Mini series - produit présenté par SENGA sas

Ball valves for compressed air, water and oil - Mini series

Plug valves

“ ✔ Reduced space requirement ✔ Direction of fluid flow: both directions ”

Ask for a quote

Presentation

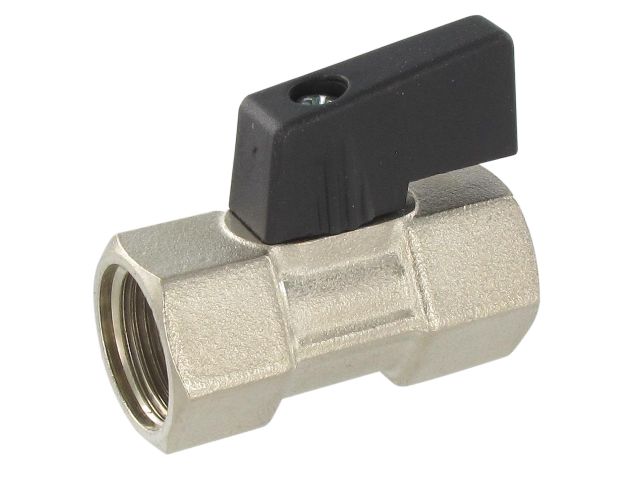

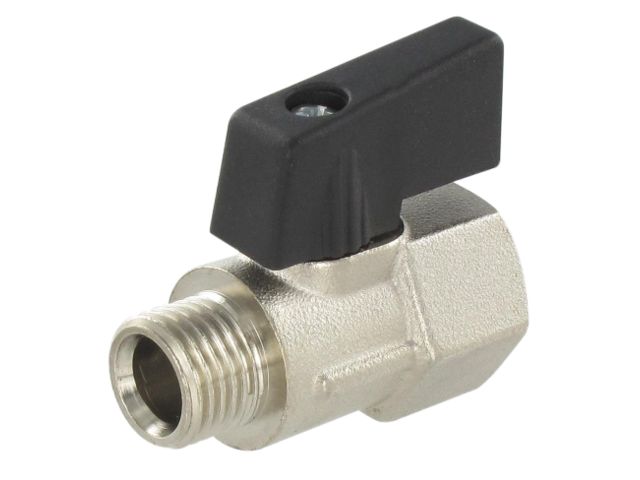

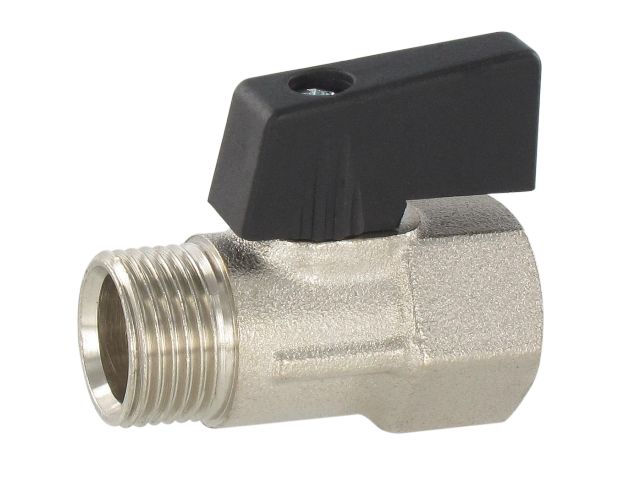

SENGA's mini series ball valves are designed for compressed air, water and oil applications.

With a nickel-plated brass construction and a glass-filled PA 66 lever, these valves are machined either from chrome-plated hexagonal bar or from forged, sandblasted and chrome-plated brass. They also feature NBR oil resistant rubber seals.

Designed to operate at a maximum pressure of 10 bar at 90°C, they are resistant to working temperatures ranging from -10°C to +90°C. The direction of fluid flow can be in both directions.

https://www.senga.fr/en/products-e-shop

Technical features

Media: compressed air, water, oil Max. working pressure: 10 bar - at 90 °C Working temperature: between -10 °C and +90 °C Materials: nickel-plated brass, PTFE, brass, glass-filled PA 66, steel, chrome-plated brass Seals: oil-resistant rubber NBR
