B1.9503 Work supports

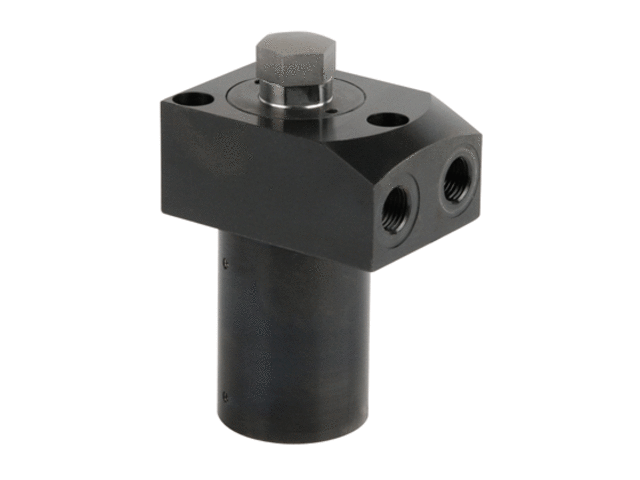

Hydraulic work supports are used to provide a self-adjusting rest for the workpiece during the machining operations. They compensate the workpiece surface irregularities, also vibration and deflection under machining loads. The top flange type allows for space-saving and direct installation into the fixture body. Oil supply is made through drilled channels or pipe thread.


Space-saving version

3 sizes

3 types of function

Contact force by spring or pneumatically adjustable (195X-321)

Load force up to 100 kN

Alternatively pipe thread or drilled channels

Metallic wiper edge and FKM wiper

Connection of positive air pressure protection is possible

Support plunger and interior parts protected against corrosion
