NEODITECH

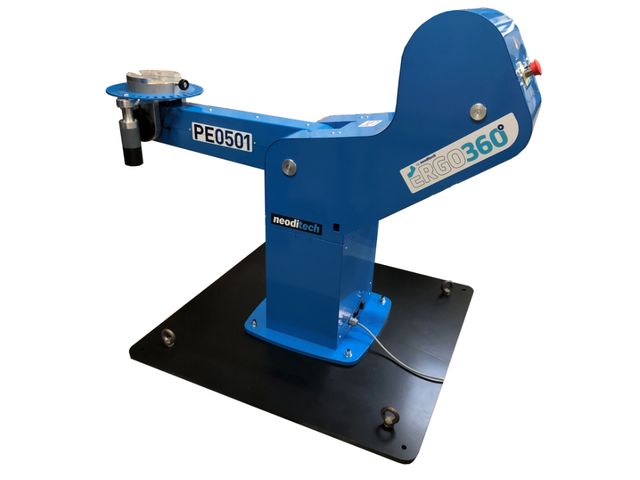

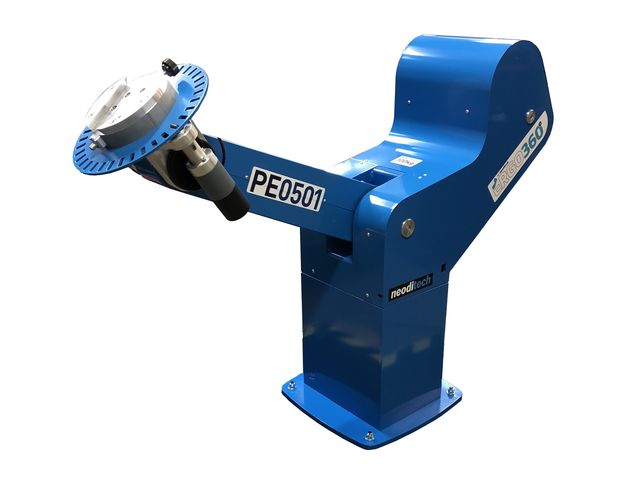

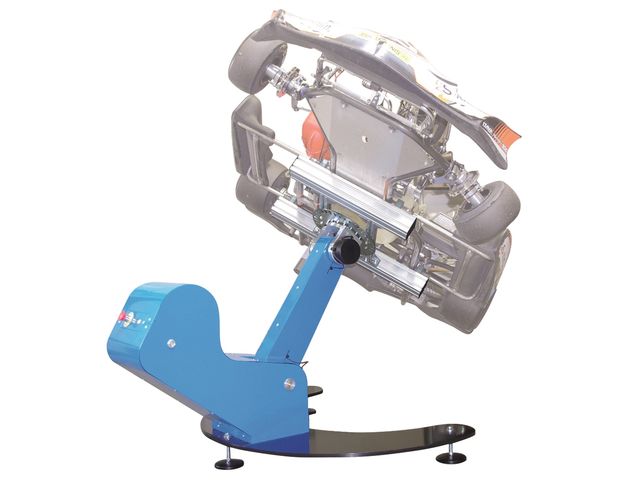

assembly station ERGO360° – 200kg : PE0503

Assembly workstation

Ask for a quote Receive Documentation Contact the supplier

Technical characteristics :

• Maximum working load (tools included): 200kg
• Available in 100 kg and 150 kg versions
• Electric arm tilt 0–90°
• Electric wrist swivel 0–90°
• Holding plate with manual rotation 0–360°
• Raise/lower speed: 35 mm/second
• Tilt/swivel speed: 5 degrees/second
• Maximum allowable torque at wrist: 390 Nm
• Weight: 200kg
• Base with feet or wheels
• Coupling between the manipulated part and the plate at the end of the wrist not included

Operation

• Mains powered – 220V single-phase supply
• Drawn power: 500W
• Number of users that can be programmed: 5
• Number of position presets per user: 3

Recommended for

Assembly and installation operations, inspection, wiring, burring, etc.
