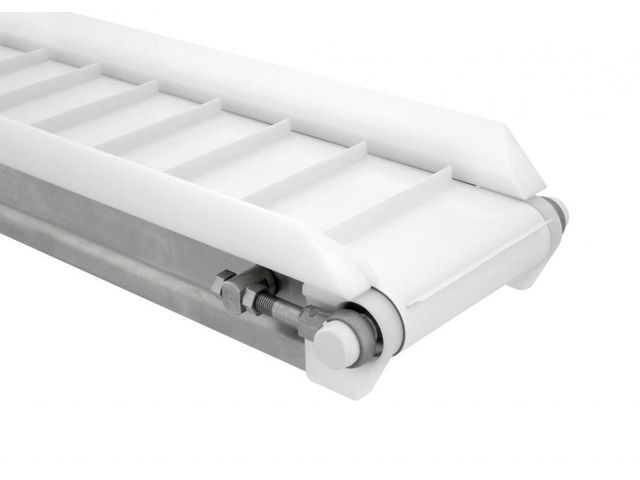

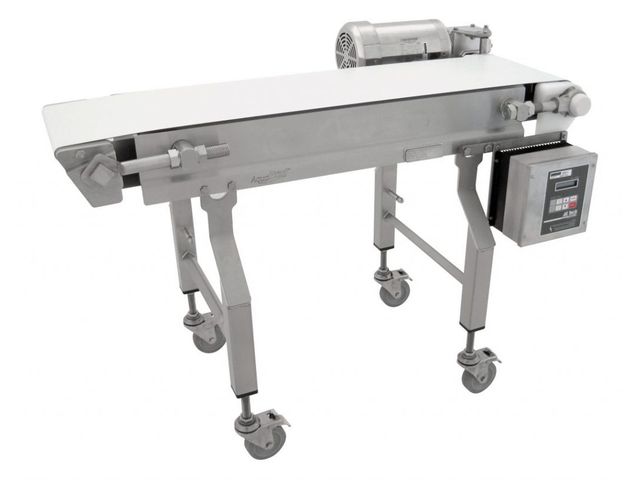

AquaPruf 7600 Conveyors

Stainless steel belt conveyor

Ask for a quote

Presentation

The open frame design allows for easy conveyor cleaning.

Frame is designed with no horizontal surfaces for optimum cleaning.
Bearings are mounted in cast stainless steel housing for maximum performances in washdown environments.

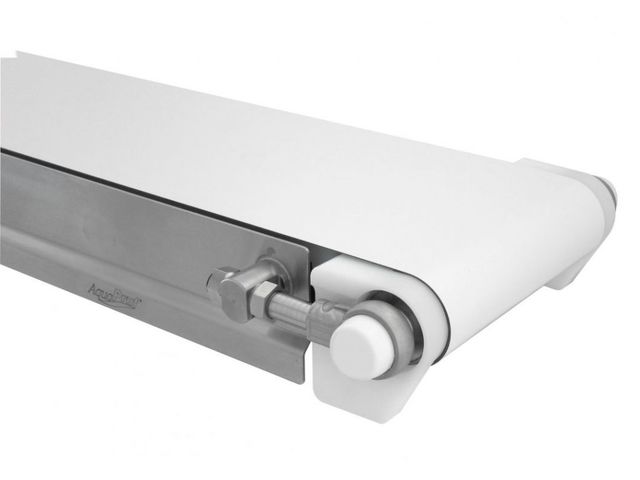

Belt tensioning mechanism uses Acme threads for easy cleaning and is externally mounted to the frame with adequate clearances for cleaning
The tool-less tip up pulley allows conveyor end to be lifted for easily for quick access to inside of conveyor for cleaning.
Conveyor is designed to withstand high pressure (100-1,500 psi) spray and chlorinated solutions.
Drive spindle is Cast-On Urethane Lagging for increased load capacity. Spindle has grooved for V-guided belts for optimum performance.
Frame cut-outs (optional) are available to allow spraying the inside of the conveyor without lifting the belt.
Nose bar idler ends (optional) are available in 1/2″, 1″ & 1 7/8″ for small product transfers.
Belt lifters (optional) lift belt from wear strips/bed plate by simply pulling an external lever for fast access and effective cleaning.
Belt scraper (optional) removes build up and adjusts easily for each application. Features tool-less disassembly/assembly for cleaning of parts.
Solid bed plate (optional) is stainless steel and locates on UHMW strips for delicate/fragile products.

Technical features

Load: 20 lbs/square food of belt Belt Widths: 6″ to 60″ Lengths: 36″ to 40′ Belt speed: 328 ft/min maximum 3.5″ diameter drive roller with cast-on Urethane lagging UHMW Wear strip bed plate Continuous TIG welded 304 stainless steel frame #4 Polish on all outside surfaces Bearing material is 400 stainless steel Bearing lubricant is H1 type FDA lubricant
