Aluminium Notching machine RAFRE-CR-SA

Milling unit

Ask for a quote Receive Documentation Contact the supplier

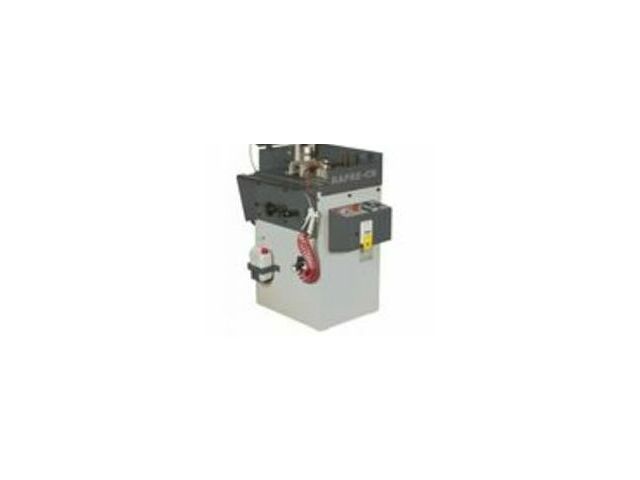

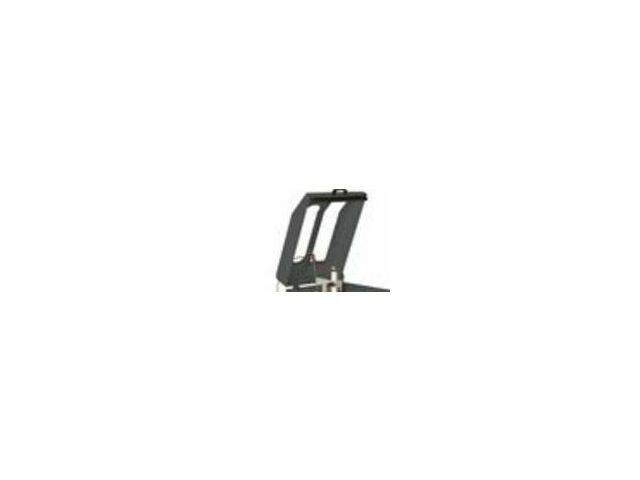

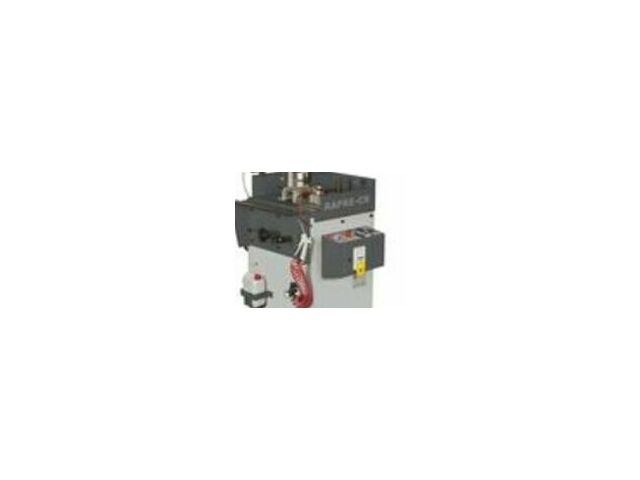

The RAFRE-CR-SA is a notching machine specially designed for the grooving of any kind of aluminium carpentry, heads machining, hinges and lock housing and shutter.This model is equipped with both vertical and horizontal tightening clamps with pneumatic cylinders.The vertical one can be adjusted in height and longitude.

The refrigeration by spraying is enabled by an adjustable nozzle.
Clamp turning 45º to the right and to the left for angle millings.
Quick change of the milling cutters set.
Adjustable stop for different measures.

Engine displacement by height adjusting spindle.

Engine : 2.75 Hp Engine speed : 3000 rpm Diameter engine shaft : 27 mm Diameter inside milling cutter : 32 mm Diameter max. milling cutters : 140 mm Cart course : 275 mm Manual lubrication : aire-aceite Dimensions : 630x515 mm Weight : 150 kg Pneumatic clamps : 2( 1 horizontal- 1 vertical)
