Aluminium dock plate Expresso

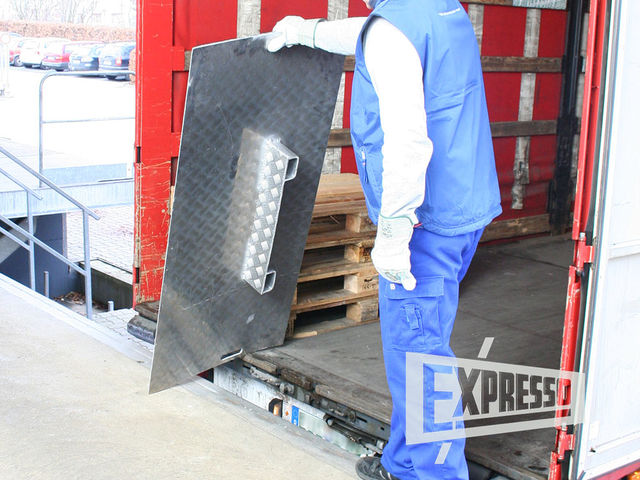

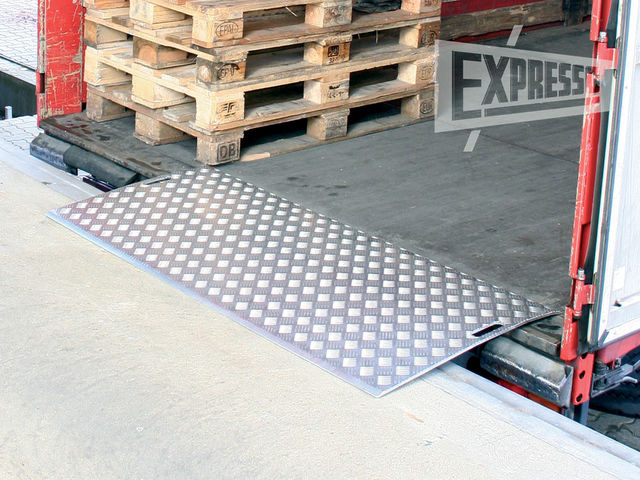

Small aluminium loading bridge plate- Ref. L
- Capacity 1000 to 1500 kg
- Very resistant aluminium chequered sheet
Non-slip surface
- Safety stop to avoid the bridge to slide
- Handle slots on either side
L8763 Capacity=1000 kg - 1000 x 800 mm - Slope 170 - Weigth 18 kg
L8764 Capacity=1000 kg - 1500 x 800 mm - Slope 280 - Weigth 30 kg
L8761 Capacity=1000 kg - 800 x 1000 mm - Slope 150 - Weigth 18 kg
L8769 Capacity=1000 kg - 1000 x 1000 mm - Slope 170 - Weigth 21 kg
L8770 Capacity=1000 kg - 1200 x 1000 mm - Slope 220 - Weigth 26 kg
L8781 Capacity=1500 kg - 800 x 1250 mm - Slope 150 - Weigth 25 kg
L8783 Capacity=1500 kg - 1000 x 1250 mm - Slope 170 - Weigth 30 kg
L8790 Capacity=1500 kg - 1200 x 1250 mm - Slope 220 - Weigth 39 kg
L8784 Capacity=1500 kg - 1500 x 1250 mm - Slope 280 - Weigth 47 kg
Aluminium loading bridge plate- Ref. L 8773
- Capacity 2000 kg and 4000 kg (for reinforced model)
- Very resistant aluminium chequered sheet
Non-slip surface
- Safety stop to avoid the bridge to slide
- Handle slots on either side
L8773/10 Capacity=2000 kg - 700 x 1000 mm - Slope 100 - Weigth 16 kg
L8773/15 Capacity=2000 kg - 700 x 1500 mm - Slope 100 - Weigth 25 kg
L8773/15R Capacity=4000 kg - 700 x 1500 mm - Slope 100 - Weigth 36 kg
L8773/17 Capacity=2000 kg - 700 x 1750 mm - Slope 100 - Weigth 29 kg
L8773/17R Capacity=4000 kg - 700 x 1750 mm - Slope 100 - Weigth 42 kg
L8773/20 Capacity=2000 kg - 700 x 2000 mm - Slope 100 - Weigth 33 kg
L8773/20R Capacity=4000 kg - 700 x 2000 mm - Slope 100 - Weigth 48 kg
L8778/15 Capacity=6000 kg - 800 x 1500 mm - Slope 115 - Weigth 68 kg
L8778/20 Capacity=6000 kg - 800 x 2000 mm - Slope 115 - Weigth 90 kg
