Additive Injection Manifold

Flow valves

“ - Platine compacte - Accuracy : +/- 0.5% - Flow range : 0.5 to 36 L/H, or 2 to 100 L/H, or 15 to 550 L/H ”

Ask for a quote

Presentation

Additive Injection Manifold AIM BLOCK from TRIMEC-GPI

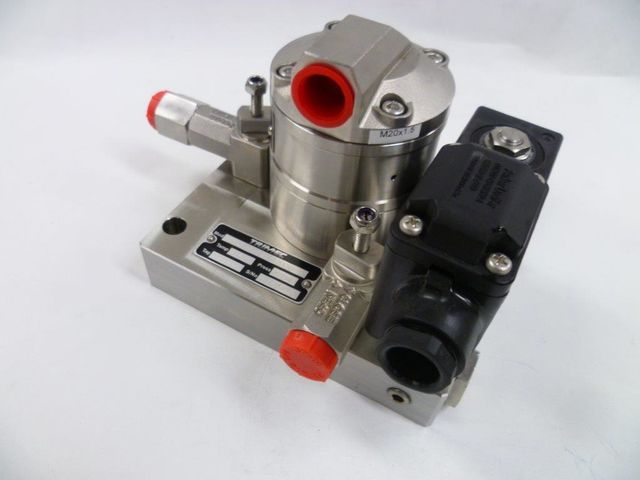

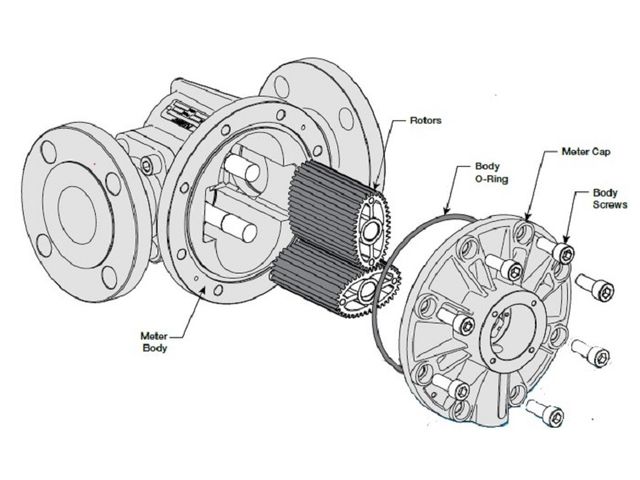

FLOMEC® AIM Block (Additive Injection Manifold is a compact all stainless steel manifold assembly complete with isolating, flow regulating & check valves, a fine mesh strainer, solenoid valve & a precision oval gear flowmeter.

AIM injects small amounts of modifying additives & performance enhancing agents into fuels & base products, these include lubricants, dyes, colourings, denaturants, detergents, odorizing, anti-freeze, anti-corrosion, anti-static, anti-detonating, anti-icing, anti-foaming and emulsifiers.

AIM block will work with any controller or TAS system, serving as a composite slave assembly for accurate blending of fuel additives to fuels at loading facilities, stationary & mobile transfer units within the petroleum industry worldwide.

Technical features

Accuracy : +/- 0.5% Repeatability : +/- 0.25% of reading Fitting : 3/4 Flow range : 0.5 to 36 L/H, or 2 to 100 L/H, or 15 to 550 L/H Temperature range : -20°C to +120°C Maximum static pressure: 30 bar (440 psi) Output : Hall effect, quadrature all effect, high resolution hall Optional 4-20mA output or quadrature pulse. IP66/67 (NEMA 4X)
