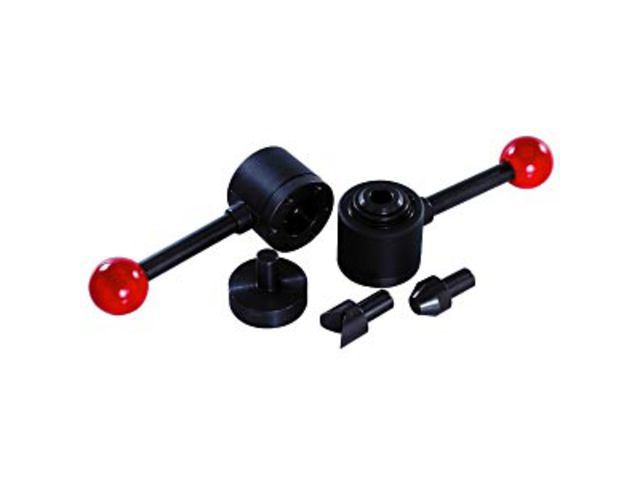

"Actima" Clamping Device 04410

Single effect pneumatic cylinder

Ask for a quote Receive Documentation Contact the supplier

Material, surface finish:

Steel black oxide finish;housing in black thermoplastic;ball knob in red duroplastic PF 31;accessories in steel black oxide finish

Note:

The travel path is 10 mm. Self-locking occurs in any position within only 2 mm of clamp travel. Thus workpieces with tolerances of up to 1.5 mm can be safely clamped.

The Actima Clamping Device can be fitted in any horizontal or vertical position. In order to achieve an individual adaptation for various circumstances, several standard parts have been developed and are available as optional accessories.

All parts of the cam system subject to heavy loads are case-hardened (pressure sleeve and accessories only if specified).

The maximum permissible clamping force is approximately 4905 N.
