Accessories for manufactured nozzles - Spray direction adjustments | UT series

Spray valve

Ask for a quote

Presentation

Features

Allows adjustment of spray direction over a range of 50 degrees as desired.

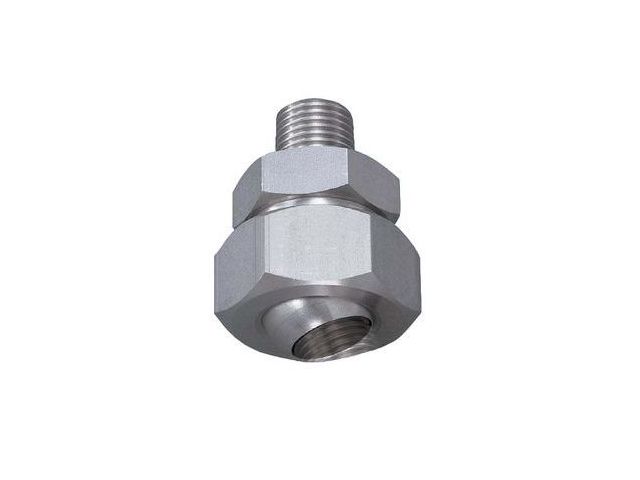

[Metal type]
Withstands pressure design. Available from 1/8″ to 3/4″ in pipe connection sizes.
Use UT-S303 (stainless steel 303) at pressure under 15 MPa (ca. 150 bar), UT-B (brass) under 4 MPa (ca. 40 bar).

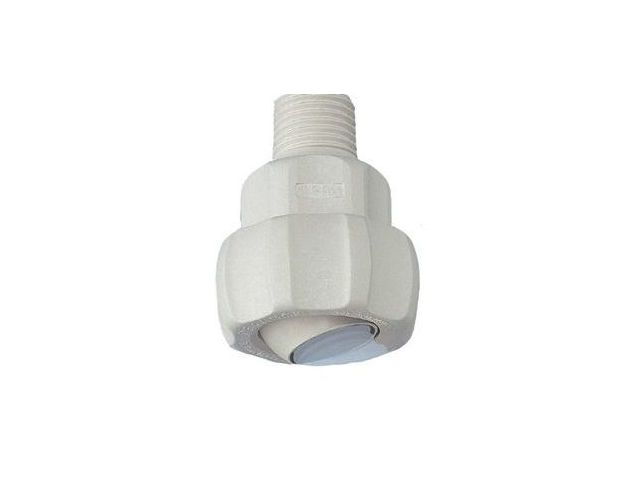

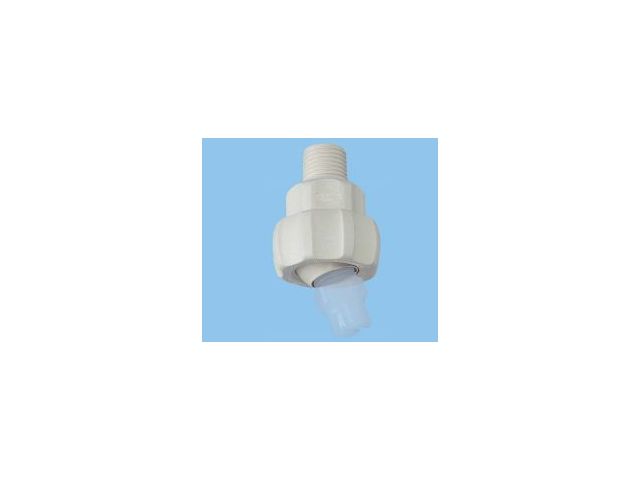

[Plastic type]
Lightweight, high seal performance. Spray direction is adjustable while spraying (up to 0.3 MPa, ca. 3 bar).
Use UT-FRPP at pressure under 1 MPa (ca. 10 bar, at room temperature).

Cautions for both types:
Do not use under conditions where water hammer or sudden change of water pressure occurs.
For use with KB and KKBP series nozzles, a different type of UT Ball Joints are required. Inquire with us for details.

Applications

Accurate nozzle alignment is possible after connected to a pipe.
Where large changes in spray direction are required depending on nozzle application such as cleaning and air blowing.
