4 Input Thermometer and Data Logger with USB Interface - HH1384

4 Input Thermometer and Data Logger with USB Interface - HH1384 - OMEGA Engineering

4 Input Thermometer and Data Logger with USB Interface - HH1384 - Digital thermometer

4 Input Thermometer and Data Logger with USB Interface - HH1384

Digital thermometer

“ Isolated Input Protection of 350 Vp-p Between any Two Inputs Highly Accurate Thermometer with Thermocouple K, J, E, T, R, S, N, L, U, B, C Types USB Interface with Windows® Software 4 Input Function T1/T2/T3/ T4 Temperature Display Programmable Hi–Lo Alarm for 4 Inputs Display MAX, MIN and MAX–MIN Values of 4 Inputs Independent Input Set-Up (Type of Thermocouple, Hi–Lo Alarm Values) Memory and Read Function (99 Sets) 512 KB Auto Data Logging Capacity ”

Ask for a quote

Presentation

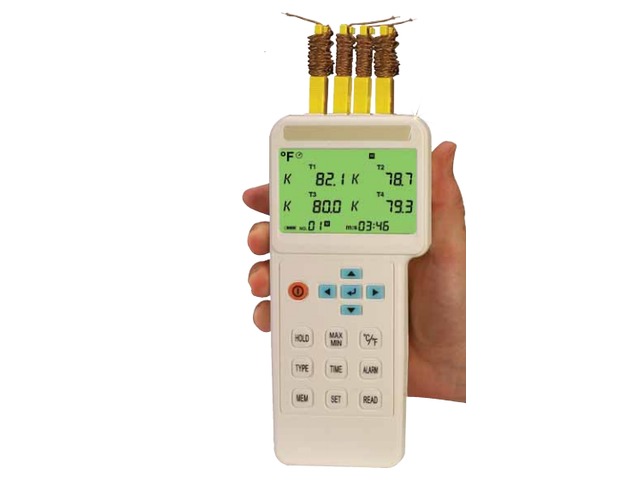

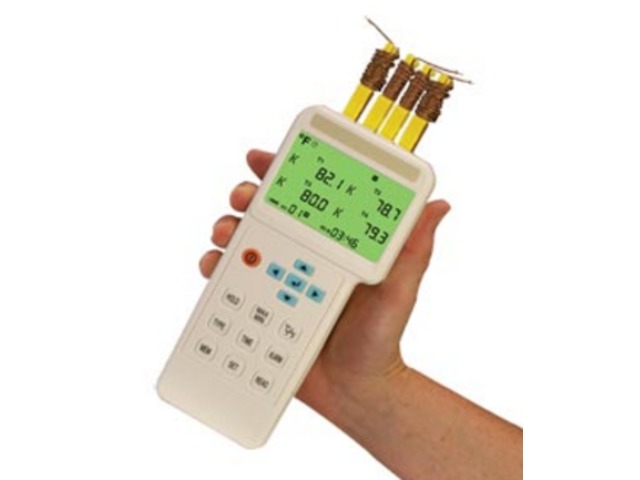

This instrument is a digital 4 input thermometer and data logger that works with any K, J, E, T, R, S, N, L, U, B and C Type thermocouple temperature sensors.

Environment Conditions
Altitude: Up to 2000 m (6562')
Relatively Humidity: 80% max
Operation Ambient: 0 to 50°C (32 to 122°F)

SPECIFICATIONS
Power Supply: 6 "AA" batteries (included) or DC 9V AC adaptor
Battery Life: Approx. 55 hours (alkaline battery)
Auto Power Off: 5, 15 or 30 minutes (if no key is pressed)
Low Battery Indicator: The indicator is displayed when the battery voltage drops below the operating voltage
Measurement Rate: One time per 2 seconds
Weight: 405 g (14.3 oz) (batteries included)
Dimension: 185 L × 73 W × 53 mm D (7.3 × 2.9 × 2.1")
Operating Temperature: 0 to 50ºC (32 to 122ºF)
Humidity: Below 80% RH
Storage Temperature: -10 to 60ºC(14 to 140ºF)
Humidity: Below 70% RH
Temperature Coefficient: 0.01% of reading ±0.1°C per °C (0.2°F per °F) outside the specified 18 to 28°C (64 to 82ºF)
Windows Compatibility: Up to Windows 8
