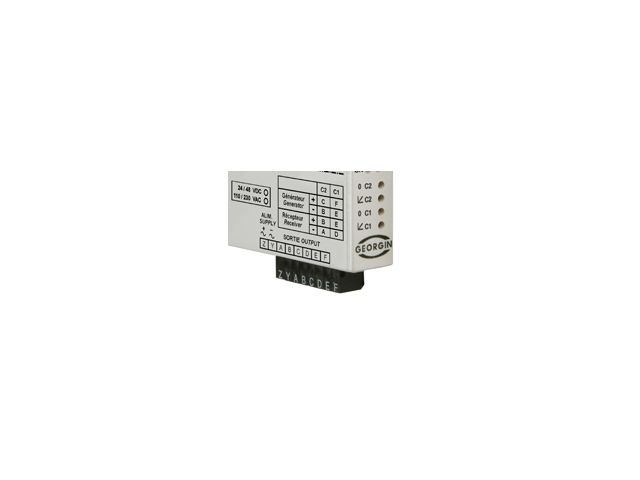

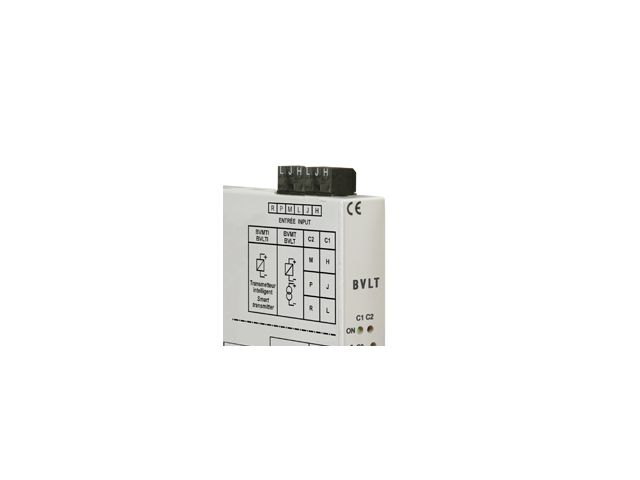

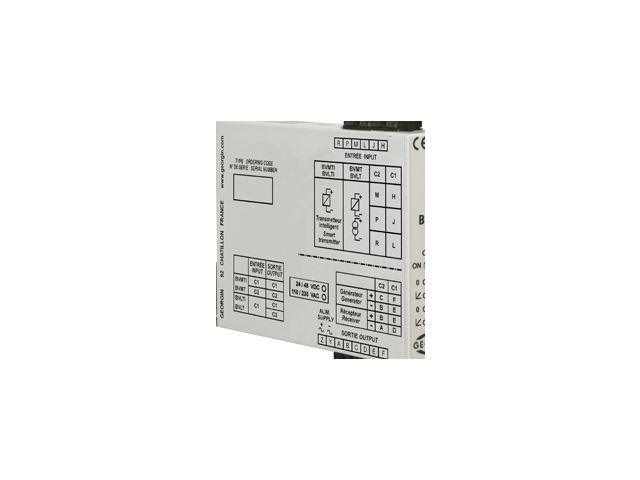

4-20mA transmitters supply | BVNT(I) - BVLT(I) - BVMT(I) Series

Power supply, Converter, Regulator

Ask for a quote

Presentation

This device is designed to interface 4/20mA signals.

Input : 4/20mA 2 wires active or passive
Output : 4/20mA 2 wires active or passive
Supply : 24-48 VDC, 110-230 VAC
Model : 1 or 2 channels and signal duplicator (1 input – 2 outputs)
Setting : Adjustment potentiometer for the source and the curve on the front
green LED for presence of voltage
Installation : Safe area

Options:

» Hart signal transparency with the barrier (BVNTI – BVLTI - BVMTI)
» Screw terminals
» ACCDIVBX power supply cables
