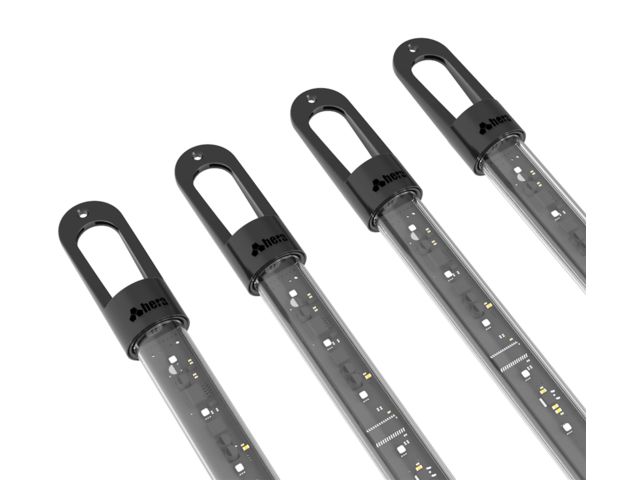

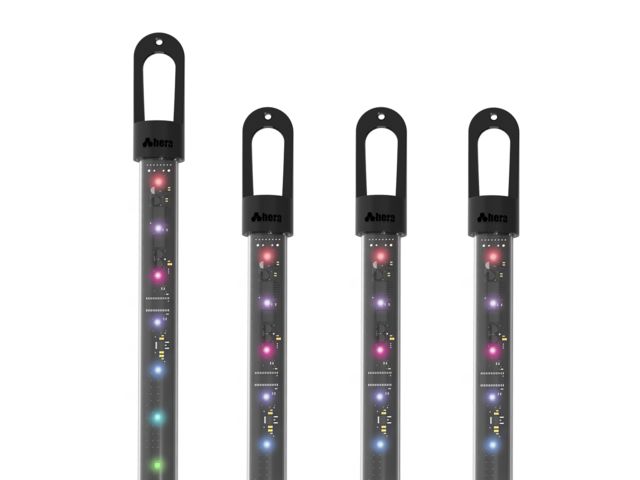

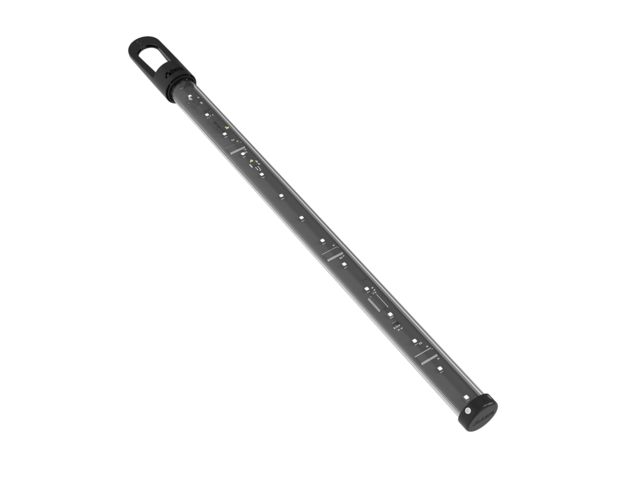

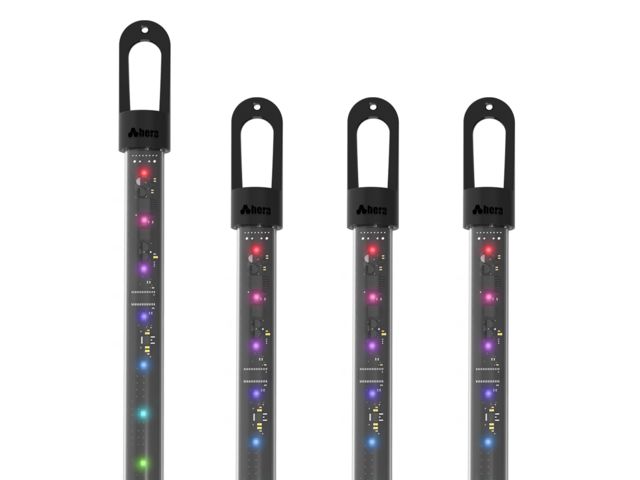

3D Vertical Tube RGB Series are designed 3D visual lighting for night club, atrium shopping center; high ceilinged hotel lobbies atriums and rental companies. It can be seen with large outlook angle (130°x2) and very lightweight body. 2D objects are converted into 3D objects and effects by pixel mapping and advanced programming technology. It gives dynamic lighting solutions with its unlimited pixel options, advanced accessories and easy assembly.
• It communicates with other fixtures by standard DMX 512 and RDM protocols without requirements of any special communication protocols or production identity. It can be addressed remotely as a group. By courtesy of this feature pixel mapping and addressing are easier.
• It can be used with very long starting cables and jumper cables for flexible and easy application due to its 12-48 VDC working voltage range.
• Fixtures’ working characteristics may be changed with DMX Personality. By this means pixel number can be changed. Number of pixels may change in order to optimize for appearances and scenarios. For example it is possible that 1 LED can be chosen for 1 pixel for each 35mm, also 2 LEDs can be chosen for 1 pixel, 4 LEDs can be chosen 1 pixel, 8 LEDs can be chosen 1 pixel and so on.
• Working status of fixtures, local temperature values, voltage input and output, serial number and DMX address can be monitored. User is informed by mail and system can response automatically according to data.
• Fixtures work compatibly with Madrix® software and hardware. You can choose fixtures in library in order to have easy pixel mapping.
• Profiles are resistant to UV light and impact. Due to its PMMA and PC materials, it will not go yellow.

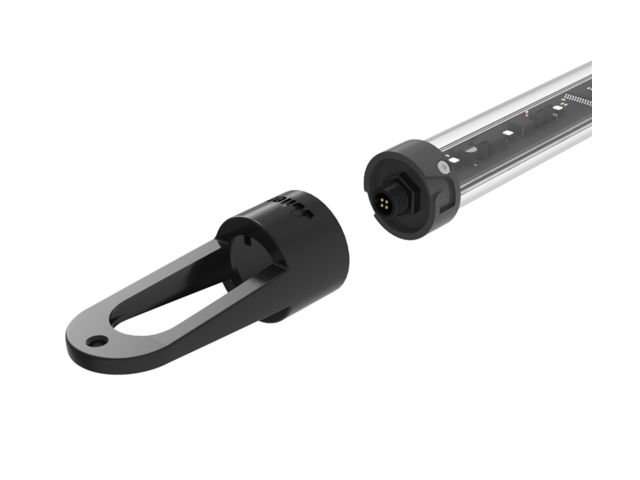

• Fixtures are installed very easily by push lock thanks to special top cover and mounting device.
• Fixtures are produced in 500mm / 1000mm / 1500mm / 2000mm length for different and long formed application.
• Power and data are transmitted via T cables in 60 cm and 120 cm length as standard. IP68 connectors can be installed easily by rotating. Interspaces between fixtures are enough. Therefore additional junction boxes are not needed.
• It has clear body as standard but opaque and translucent bodies can be produced as well.
