200 A digital micro-ohmmeter C.A 6292

Ohmmeter

“ ● Resolution: 0.1μΩ ● Adjustable test current up to 200 A ● Automatic mode: 50 A, 100 A, 150 A and 200 A ● Unlimited test duration up to 100 A ● Safe measurements: Both Sides Grounded method (BSG mode) ● Internal cooling system ● Storage of up to 8,000 measurements ● Communication with PC via USB ● Site-proof case for difficult environments ”

Ask for a quote

Presentation

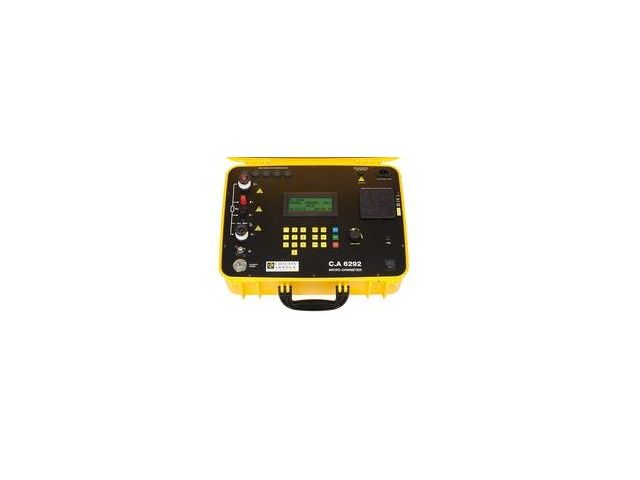

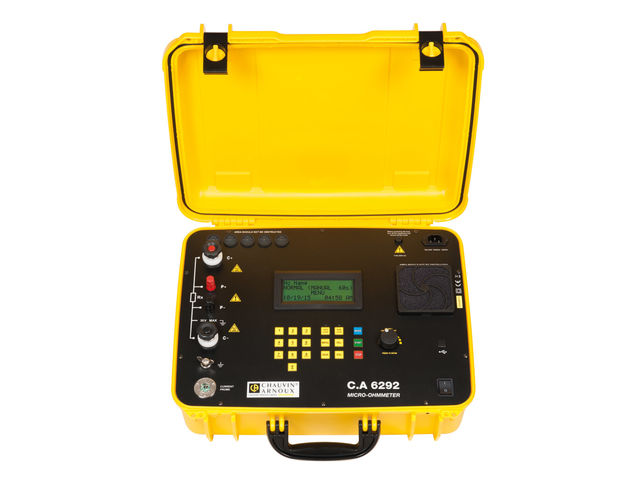

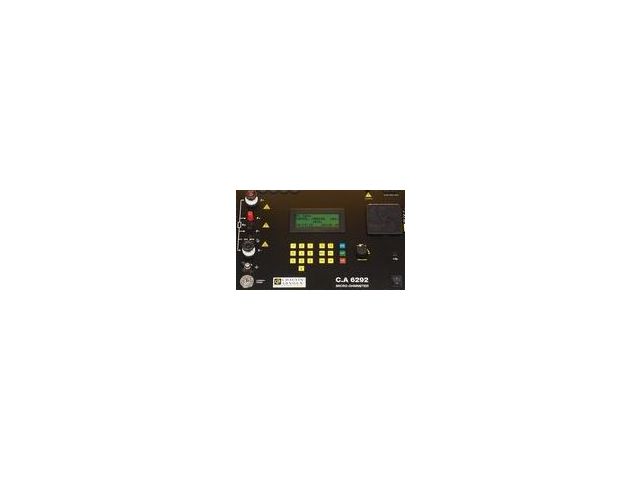

For the safest possible measurements, the brand new C.A 6292 200 A digital micro-ohmmeter from Chauvin Arnoux^Ò is supplied in a rugged, IP54 site-proof casing. It is equipped with the BSG (Both Sides Grounded) mode which helps to remove the risks due to inductive phenomena by earthing both sides of the object tested. In this way, the measurements are performed in total safety for both people and equipment.

It can be used to cover a wide range of applications such as:
-          Contact resistance tests on MV/HV cells
-          Verification of contact quality on circuit-breakers, switches, relays, etc.
-          Resistance testing on busbars, cables, windings, etc.
-          Checking of continuity on rails, axles or welds
-          Testing of surface condition and metallization
-          Cut-off device tests

Technical features

Test current: Programmable from approx. 20 A to 200 A Resistance: 0.1 μΩ to 2 mΩ/ 2 to 200 mΩ / 200 mΩ to 1 Ω Accuracy : ± 1% from 50 µΩ to 1 Ω Measurement method: 4 Kelvin-type connection terminals Test mode: Normal or BSG (Both Sides Grounded) Test duration: Adjustable from 5 to 120s @200 A / unlimited up to 100 A Data storage: Up to 8,000 measurement results Interface USB 2.0 Dimensions : 502 x 394 x 190 mm Weight: 13 kg approx. (excluding accessories)
