2 independent cylinders electro-pneumatic pad printing machine | TTN 200 EKO Universal

Automatic marking systems

Ask for a quote

Presentation

Semi automatic pad printing machine equipped with

- 2 ink cups of 90 mm, with steel ring
- A pad shuttle to print the 2nd colour
-a xy product table to set print position

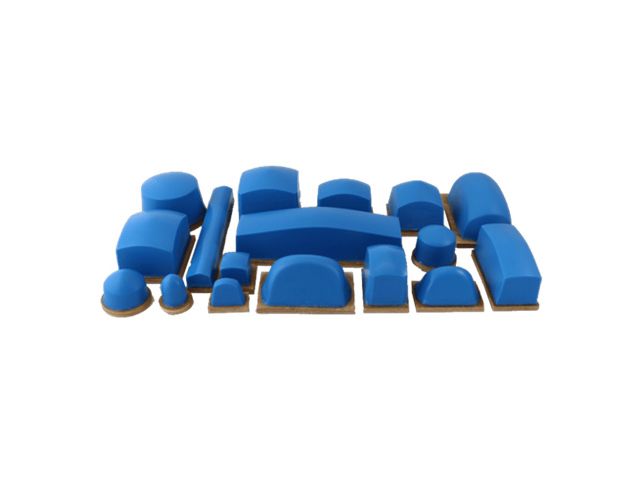

The shuttle moves silicon pads, avoiding the risk of moving substrate and getting a gap between the 2 printed colors.

Number of colors : 2

Technique : 90 mm closed ink cups with steel ring (quantity = 2)

Maximum printing sizes : 80 mm diameter

Plate sizes : 250 x 200 MM

Output : 800 Cycles / hour

Silicon pad pressure : 750 N / 6 bars

Sizes : 720 x 269 x 740 mm

Weight : 50 Kg

Air consumption : 70 L / min at 6 bars
