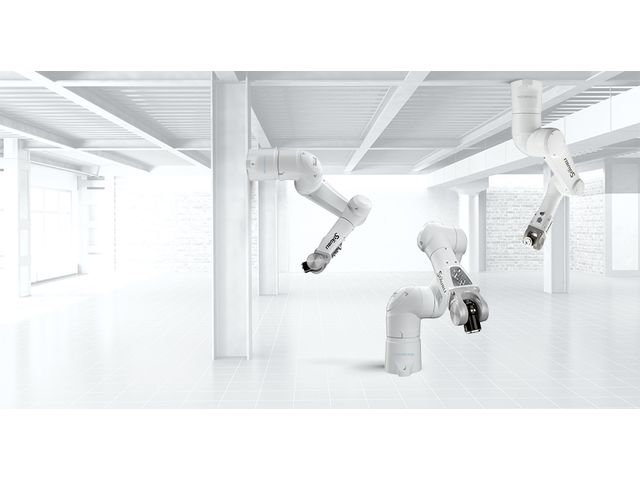

TX2-90 | TX2-90L | TX2-90XL Cleanroom/ Supercleanroom 6-axis robotic arm

TX2-90 | TX2-90L | TX2-90XL Cleanroom/ Supercleanroom 6-axis robotic arm - STÄUBLI ROBOTICS

TX2-90 | TX2-90L | TX2-90XL Cleanroom/ Supercleanroom 6-axis robotic arm - 6 axis robot

TX2-90 | TX2-90L | TX2-90XL Cleanroom/ Supercleanroom 6-axis robotic arm - produit présenté par STÄUBLI ROBOTICS

TX2-90 | TX2-90L | TX2-90XL Cleanroom/ Supercleanroom 6-axis robotic arm

6 axis robot

Ask for a quote

Presentation

TX2-90 Cleanroom robots were designed from the outset to comply with the stringent requirements of cleanroom environments. They offer the added advantages of superior throughput capabilities and reliability, with field tested reliability in 24/7 industrial environments.

ADVANTAGES OF THE TX2-90 CLEANROOM

Suited to meet the requirements of clean environments

ISO 14644-1: Class 2
FS 209E: Subclass 1

Optimum use of the work area
The compact size of Stäubli robots reduces their footprint. With their large work envelope, they are designed for a wide variety of applications.

Work in difficult environments
To meet the needs of all markets, our robots come with an optional vertical cable outlet. It is located underneath the base for optimal protection of connections in sensitive environments.

High precision, long life and reduced maintenance
Stäubli is the only robotics manufacturer to make its own reduction gear systems, specifically designed to cut down on maintenance and extend the life of the robot.

Technical features

Load capacity TX2-90 : 14 kg | TX2-90L : 12 kg | TX2-90XL : 7 kg Reach : 1450 mm Degrees of freedom : 6 Repeatability : ±0,03 mm | ±0,035 mm | ±0,04 mm Cleanroom standard ISO 14644-1, FS 209E: Class 2 Subclass 1 Protection class (*wrist) : IP65 (*67) Attachment methods : 360° mounting possibility Stäubli CS9 controller
