Paperless recorder - DS 500

Data acquisition systems

Ask for a quote

Presentation

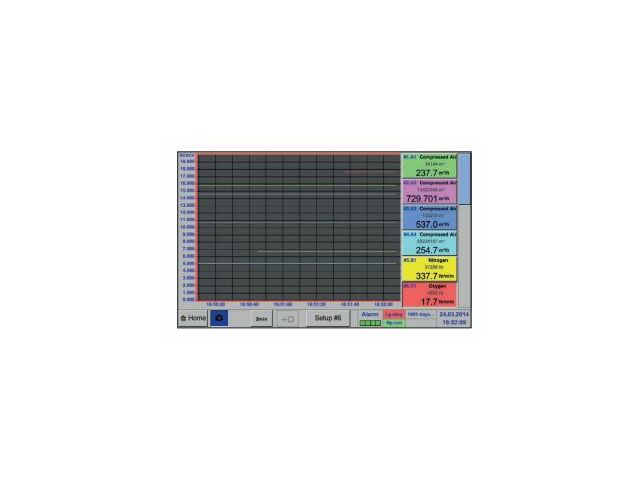

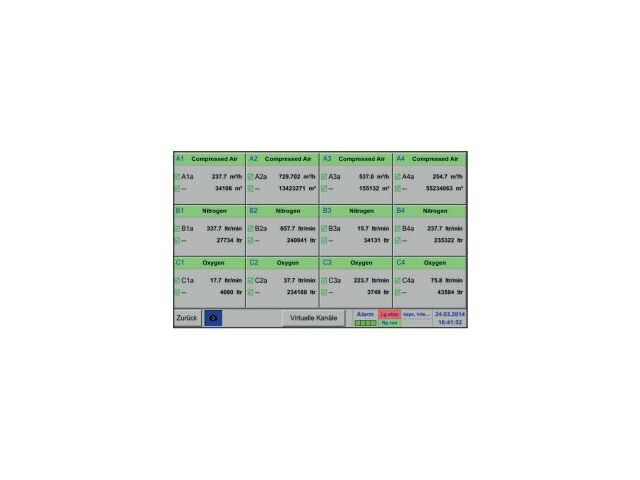

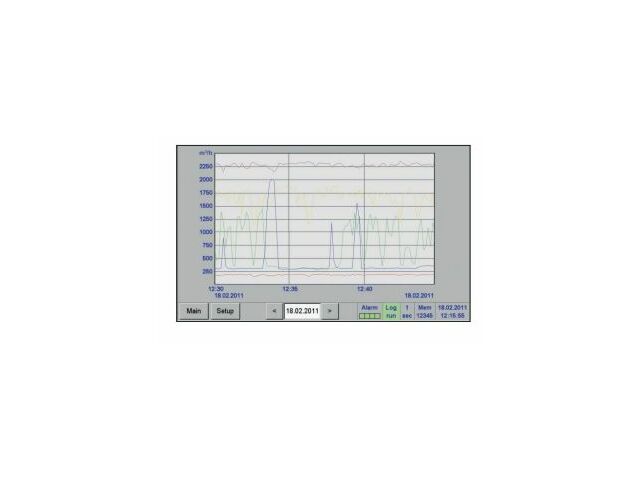

Recording of the measured data, indication on a big colour screen, alerting, storage up to remote read-out via webserver. By means of the CS Soft Basic software alarms can be sent via SMS or e-mail. All measured values, measured curves and threshold exceedings are indicated. The curve progressions from the beginning of the measurement can be viewed by slide of the finger. Daily/weekly/monthly reports with costs in € and counter reading in m³ for each consumption sensor are completing the system concept. The difference to ordinary paperless chart recorders reveals in the easy initiation and in the evaluation of the measured data. All sensors are identified directly and powered by DS 500.

- 7" colour screen with touch panel
- Up to 12 optional sensors can be connected
- Suitable for industrial applications: Metal housing IP 65 or panel mounting
- Data avialable though world wide web: Network-compatible and remote transmission via webserver
- Daily/weekly/monthly reports
- Mathematical function for internal calculations
- Totalizer function for analogue signals
- Saves time and costs during installation
- Mathematical function for internal calculations

e.g. the typical figures of a compressed air plant:
- costs ins € per generated m³ air
- kwh/m³ generated air
- consumption of single lines including summation

Totalizer function for analogue signals:
e.g. 0/4...20 mA, 0...10 V. In case of third-party sensors which e.g. only give a 4...20 mA signal for the actual flow in m³/h a total counter reading in m³ can be generated by means of the totalizer function.
