Measurement and Control Systems : VM9 GA

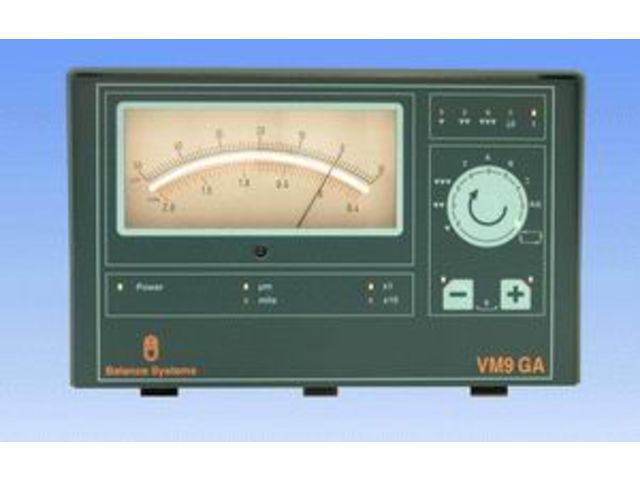

Electronic unit for in-process gauging and grinding cycle control
Features :

• Handling of two LVDT transducers, for continuous and interrupted surfaces gauging.
• Compact size.
• Bench and built-in versions.
• Application customisation by the user through the set-up of :
- Gauging formulas;
- Arms ratio for self-learning;
- Metric or British measurement units.
• Analogue indicator for the continuous measurement
display, with x1 and x10 automatic scale change.
• Digital I/O, SINK or SOURCE type, for the connection to CNC/PLC.
• The operator's panel provided with sensitive waterproof sandwich keyboard allows:
- Setting the three gauging thresholds for the output contact;
- Setting the delay of cycle start input contact and zero quota output contact;
- Setting the zero correction value (offset);
- Selection of the reading of individual transducers for the mechanical manual zeroing;
- Measure electronic, manual and automatic zeroing.
• Memory and LEDs test performed at start-up.
