FLEXIBLE SILOS 4m³/7 m³ (MAXIBAG)

FLEXIBLE SILOS 4m³/7 m³ (MAXIBAG) - ManuLine

FLEXIBLE SILOS 4m³/7 m³ (MAXIBAG) - Big bag emptying

FLEXIBLE SILOS 4m³/7 m³ (MAXIBAG) - produit présenté par ManuLine

FLEXIBLE SILOS 4m³/7 m³ (MAXIBAG)

Big bag emptying

“ - Flexible silo very resistant, rot-proof and treated against UV rays. - The fabric of the silo is: • Slightly porous in order to avoid the condensation inside of the silo. • Flexible in order to facilitate the discharge of the silo. -Excellent resistance to corrosion, even in aggressive atmospheres. - « Scissors » valve in order to discharge the Maxibag : easy to handle thanks to 2 levers that you move apart and then tighten. If the height under the valve (70cm) is not enough, possibility to put the silo on 4 lifted cubes. - System easy and quick to assemble (provided with instructions of use) Low height: can best used in most of the places. ”

Ask for a quote

Presentation

STORING SOLUTIONS FOR CATTLE FOOD (PELLETS OR FLOUR), SEEDS, CHEMICAL PRODUCTS, PLASTIC PELLETS, ETC.

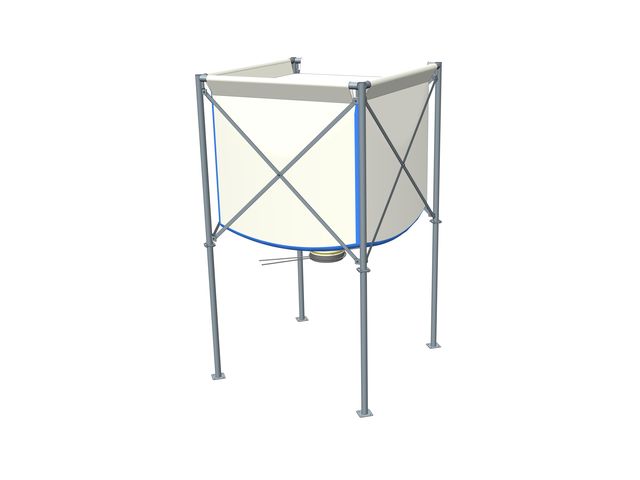

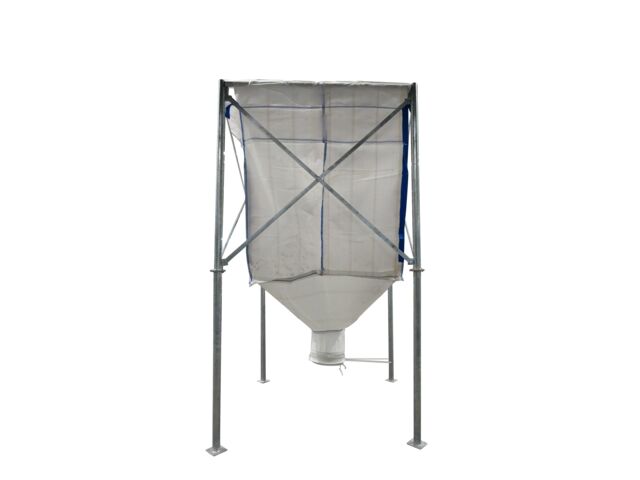

- The Maxibag is made up of the following elements :

1x galavanized structure,
1x flexible silo (4m³ or 7m³),
1x « scissors » valve ,
1x ties for mounting.

- 2 models available: 4m³ and 7 m³.

- The silo is not water-proof and must be put under cover.

- Optional:

Pneumatic supply: Steel pipes with big radius bends and storz coupling diameter 100mm.

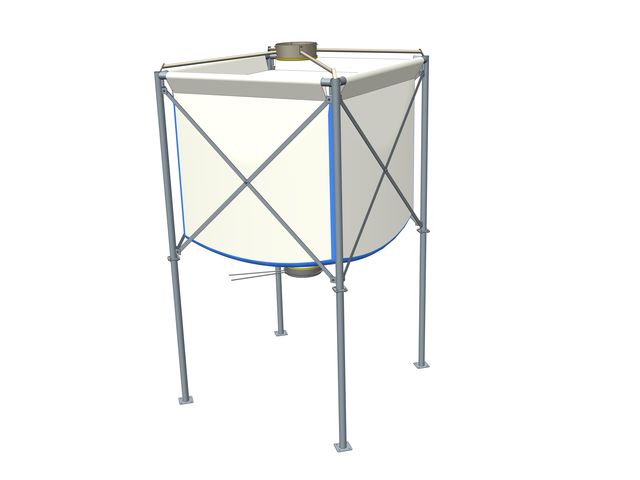

Supply with screw: Cylindrical steel entry diameter 400mm put at the top of the 4 posts of the silo. Facilitates the filling of the silo by truck.
