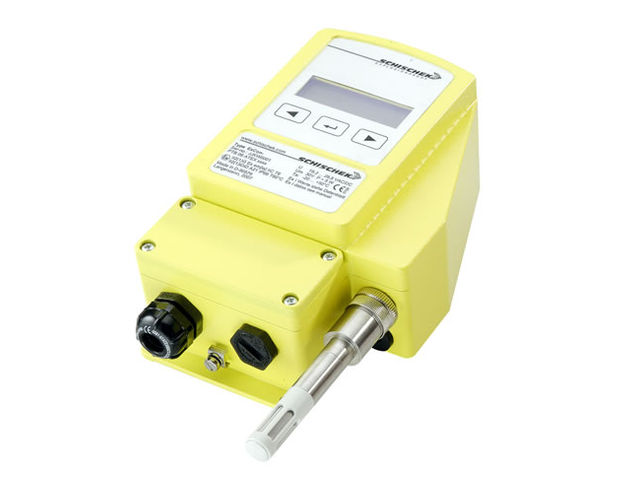

Ex- Temperature and/or humidity sensor : ExCos-D

HVAC application, zones 1, 2, 21 and 22

The new ExCos-D... transducer generation from together with direct coupled ExPro sensors are a revolution for measuring temperature and/or humidity in HVAC systems,  in chemical, pharmaceutical, industrial and Offshore-/Onshore plants, for use in hazardous areas zone 1,2 (gas) and zone 21, 22 (dust). Highest protection class (ATEX) and IP 66 protection, small dimension, universal functions and technical data guarantee safe operation even under difficult environmental conditions. The measuring ranges are scalable within the maxium ranges. The analogue output signal is either 0...10 VDC or 4...20 mA and can be selected on site. The integrated display is for actual value indication which can be switched off. All sensors are programmable on site without any additional tools. ExCos-D-A transducer are additionally equipped with a 4 ... 20 mA IS (IS = intrinsically safe) output, e.g. for an external indicator.

Also available for Ex- area 2 and 22.
