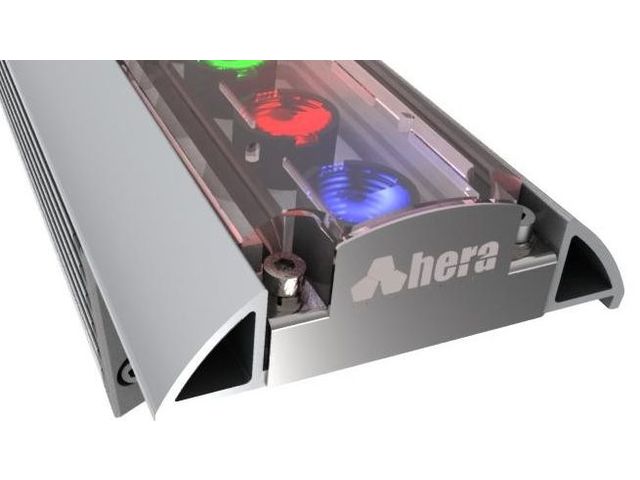

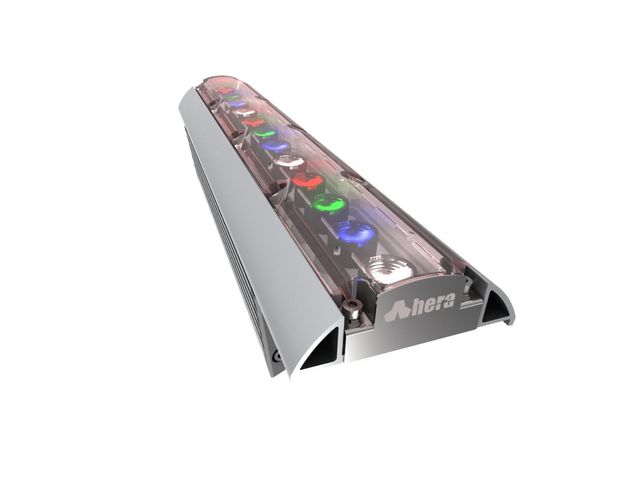

Proline RGBW Series consists of 3 Red, 3 Green 3 Blue and 3 6500K LEDs per 305mm (1 ft). It provides perfect color combination with its 305 mm (1 ft), 610 mm (2 ft), 915 mm (3 ft), 1220 mm (4 ft) long and 4 different light beam angle.
For more detailed animation each 305 mm of can be addressed separately. 4 colors RGBW per pixel offer vivid color and white content in a single system and intelligent “+White” algorithms allow systems using 3 channels signal to control 4 colors per pixel, this enhances the display quality and improved efficiency.
It can be used for dynamic lighting where long and linear appearance is needed and give opportunity for special demands. Owe to its connector on both sides input and output can be done without gap.
Universal power input 90 ~ 264VAC is used for long range connection. It can be used and programmed by DMX 512 and RDM protocols without need of long and special communication protocols.
• RGBW can be used in 4 channels with DMX Personality. System can be controlled 4 colors per pixel with RGB and smart white algorithm. All customizations options can be chosen remotely with DMX 512 protocol.
• It communicates with other fixtures by standard DMX 512 and RDM protocols without requirements of any special communication protocols or production identity. It can be addressed remotely as a group. By courtesy of this feature pixel mapping and addressing are easier.
• It can be used with very long starting cables and jumper cables for flexible and easy application due to its 90 ~ 264VAC 50/60Hz universal voltage range
• Fixtures’ working characteristics may be changed with DMX Personality. By this means pixel number can be changed. Number of pixels may change in order to optimize for appearances and scenarios. For example it is possible that 1 LED can be chosen for 1 pixel.
• Working status of fixtures, local temperature values, voltage input and output, serial number and DMX address can be monitored. User is informed by mail and system can response automatically according to data.
• Fixtures work compatibly with Madrix® software and hardware. You can choose fixtures in library in order to have easy pixel mapping.

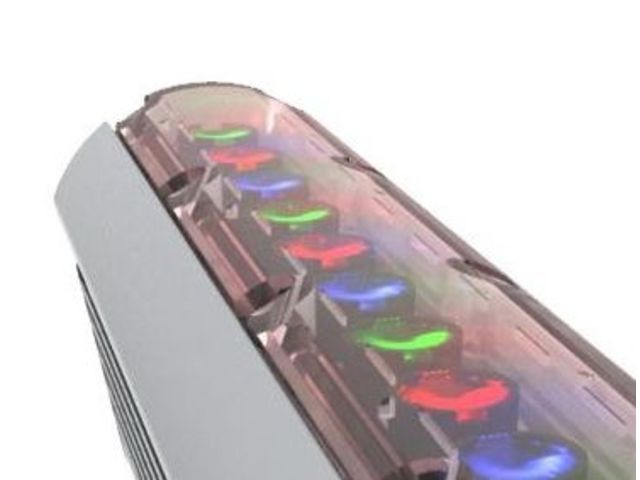

• It has four different light beam angles in 8° / 30° / 45° / 13°+ 40°. Each 305 mm (1 ft) consists of 12 LEDs.
• Fixtures can be installed next to each other and have no gap due to its special side cover design. It forms linear and continuous view.
• Fixtures are produced 305mm (1 ft), 610mm (2 ft), 915mm (3 ft) 1220mm (4 ft) long for long and different applications. Fixtures provide easy and flexible installment in confined spaces owe to a movable device on it.
• Fixtures are designed for harsh outdoor condition and resistant against vibration, impact and thermal shock owe to their solid aluminum and PMMA cover and IP66 class protection markings.
• Power and data are transmitted by input and output cables IP68 connectors can be installed easily by rotating. Interspaces between fixtures are enough. Therefore additional junction boxes are not needed.
• It produced with clear anodized coated body as standard but according to customers’ demand fixture can be painted to different anodized color codes.
