Eco-Fix Kit S

3D measurement

Ask for a quote Receive Documentation Contact the supplier

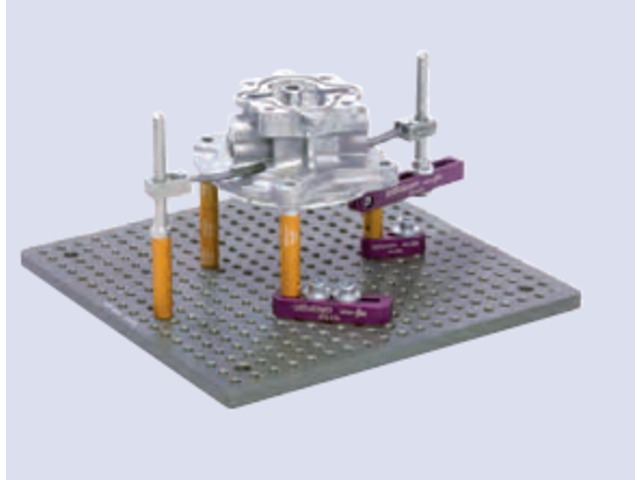

This Small Mitutoyo eco-fix kit comprises 59 pieces and includes a 250mm x 250mm baseplate that fixes to the measuring table to provide the foundation on which the fixture is built up. Location pins are positioned to support the workpiece at strategic points using various types of fitment on the pin ends, such as extensions, flats, cones, square corners and spring clips to positively locate and clamp the workpiece in the desired orientation. Location pins can be screwed directly into the tapped holes in the baseplate or, alternatively, into receiver brackets that enable pins to be positioned at exact points underneath the workpiece. The kit is supplied in a foam storage tray with all tools needed to assemble a fixture.
