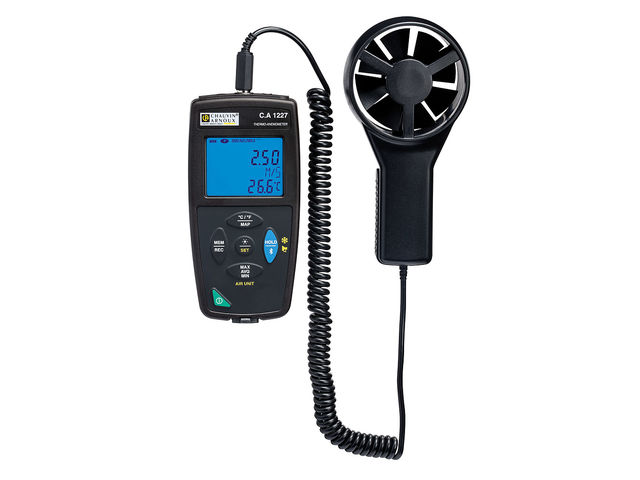

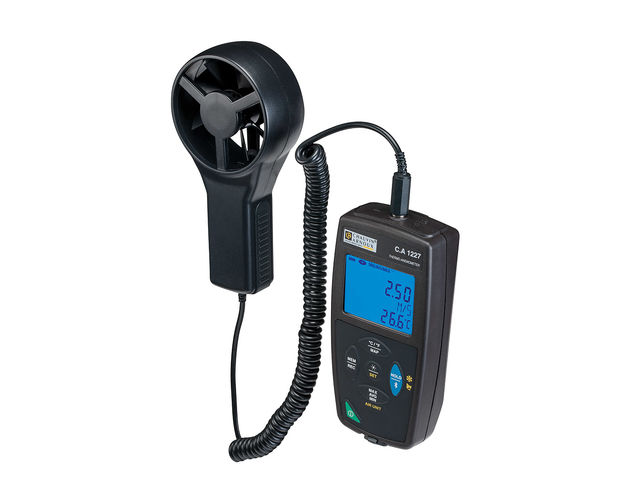

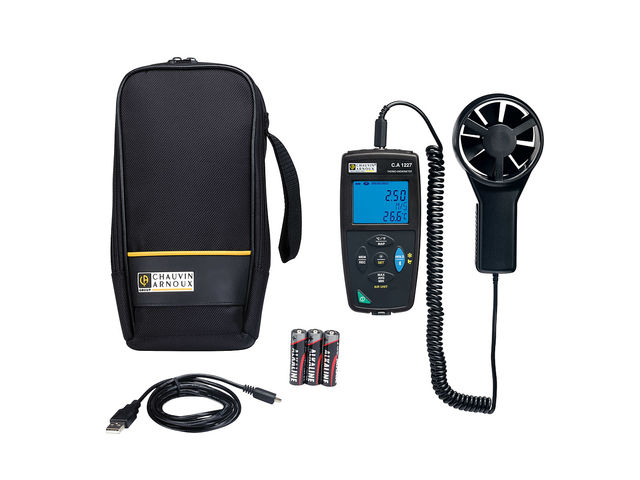

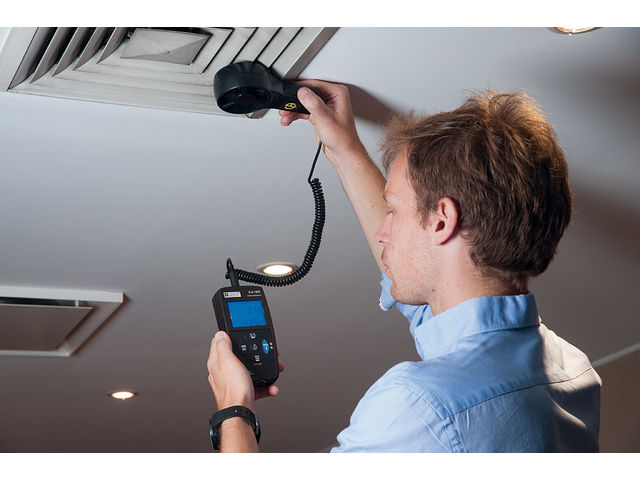

C.A 1227 Thermo-anemometer

Anemometer

Automatic Trailer Coupling Type 2050 Model A.Type 2050 trailer coupling to combine with class D50 drawbar eyes in accordance with EC regulation 94/20 or ISO 1102 or to combine with 50 mm DIN 74053...

“ Wide backlit display MAP function for mapping the air speeds measured Min, Max, Average and Hold functions Flow rate measurement Recording up to 1 million points Communicating via USB or Bluetooth Data Logger Transfer software with automatic report generation ”

Ask for a quote

Presentation

- Flow rate measurement range: 0.25 m/s to 35.0 m/s
Intrinsic uncertainty: ± 3 % of reading ± 4 counts
- Flow rate measurement with the cones kit available as an accessory
Square cross-section: 346 x 346 mm / Circular cross-section: Ø210 mm
- Temperature measurement range: - 20.0 to + 50.0 °C
Intrinsic uncertainty: 0 to 50 °C : ± 0.8 °C / -20 to 0 °C : ± 1.6 °C
- Min, Max, Average, MAP and Hold functions / Backlighting
- Air speed units: m/s, km/h, fpm, mph
- Flow rate units: m3/s, m3/h, l/s, cfm
- Recording up to 1 million points
- USB or Bluetooth interfaces
- Vane diameter: Ø8 mm
- Casing dimensions: 150 x 72 x 32 mm / Sensor: 160 x 80 x 38 mm
- Weight: 400 g with batteries
- Compatible with the Multifix accessory
- Shockproof protective sheath available as an accessory

Technical features

Flow rate measurement range: 0.50 m/s to 27.0 m/s - Intrinsic uncertainty: ± 3 % of reading ± 0,1 m/s Flow rate measurement with the cones kit available as an accessory Square cross-section: 346 x 346 mm / Circular cross-section: Ø210 mm Temperature measurement range: - 20.0 to + 50.0 °C Intrinsic uncertainty: 0 to 50 °C : ± 0.8 °C / -20 to 0 °C : ± 1.6 °C Min, Max, Average, MAP and Hold functions / Backlighting Air speed units: m/s, km/h, fpm, mph Flow rate units: m3/s, m3/h, l/s, cfm Recording up to 1 million points Vane diameter: Ø8 mm Casing dimensions: 150 x 72 x 32 mm / Sensor: 160 x 80 x 38 mm Weight: 400 g with batteries

Download the complete technical features
