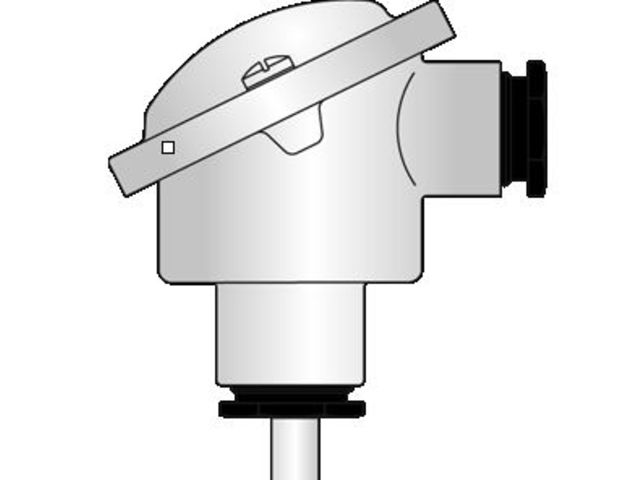

Thermocouple with extension tube - low pressure version : TI-2 LP

Temperature probe

Ask for a quote Receive Documentation Contact the supplier

Applications

General purpose measurement probe – all industry domains.

Sensing element

Thermocouple type K, J or T, single or duplex with tolerance class according to IEC 60584 (EN 584).

Temperature range : 0 to 600 °C

External sheath

AISI 316L seamless tube – wall thickness 1 mm
Diameter: 9 mm standard, other diameters available on request
Insertion length: standard 160, 250 and 400 mm, any other length on request.
Hint : Insertion length
For parallel thread (BSP) the length L is measured WITH the thread.
With conical threads (BSPT and NPT) the length L is measured WITHOUT the thread.

Process connection

Standard ½"" BSP-M
Other sizes or threads available on request.

Extension or lagging

Standard 145 mm, other lengths available on request

Connection head

Standard DIN type B head with M20 cable gland (other connection heads available on request)
