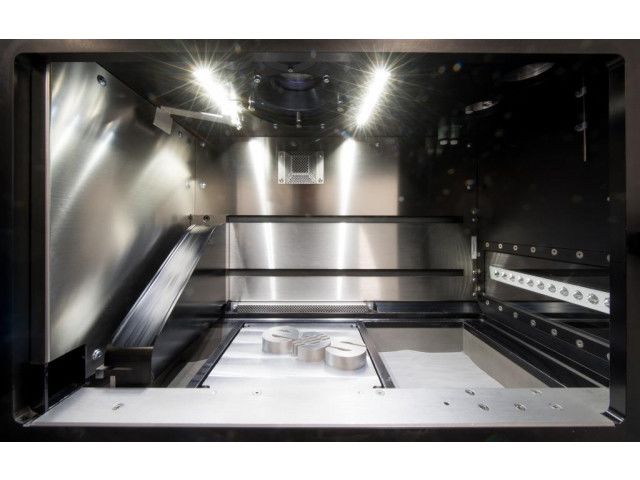

With a building volume of 250 x 250 x 325 mm, the EOS M 290 allows a fast, flexible and cost-effective production of metal parts directly from CAD data. An intuitive user interface, the intelligent software concept with a combination of open and standardized parameter sets and the improved filter system are specially designed for the industrial production. The robust system design and the powerful 400-watt fiber laser enable a reliably high performance day in, day out. The exceptional high beam quality of the laser spot and its excellent detail resolution is ideal for manufacturing highly complex DMLS components ensuring homogeneous part properties from part-to-part, job-to-job and machine-to-machine. The widest range of validated materials and processes available in the market covering all customer requirements. The intuitive, open and productive CAM tool EOSPRINT allows optimization of CAD data ensuring a quick and easy job and workflow management.
Building volume: 250 mm x 250 mm x 325 mm (9.85 x 9.85 x 12.8 in) (height includes build platform)Laser type: Yb-fibre laser; 400 WScanning speed: up to 7.0 m/s (23 ft./sec)Focus diameter: 100 μm (0.004 in)Power supply: 32 A / 400 VPower consumption: max. 8,5 kW/ average 2,4 kW/with platform heating up to 3,2 kWInert gas supply: 7,000 hPa; 20 m³/h (102 psi; 706 ft³/h)Dimensions (B x D x H) System: 2,500 mm x 1,300 mm x 2,190 mm (98.4 x 51.2 x 86.2 in)Recommended installation space: min. 4,800 x 3,600 x 2,900 mm (189 x 142 x 114 in)Weight: approx. 1,250 kg (2,756 lb)
