Aluminium sliding drawbridge leveller Brand: EXPRESSO

Platform bridge

The SAPELEM company proposes, to his customers, Ze Solution including various types of ergonomic manipulators who meet the requirements of the job for the handling and the manipulation of products and...

“ High flexibility, one person can slide the dock leveler sideways to the required position ”

Ask for a quote

Presentation

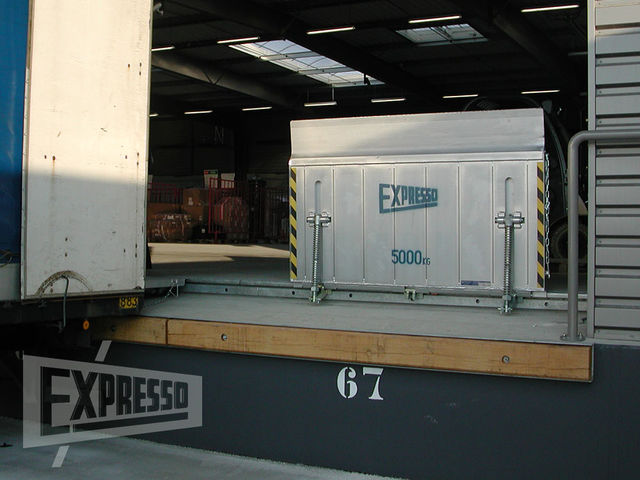

Aluminium sliding drawbridge leveller Ref. 8861/8862

Capacity 5000 kg
Drawbridge leveller static version : Ref. 8862
Drawbridge leveller sliding version : Ref. 8861
Steel guide rail
Very resistant non slip aluminium profil
Two strong springs and chain or drawbar with handle (depending on model)
for easy lifting of the drawbridge leveller
Automatic lock in vertical position

Ref.     Length x Width (mm)
1115     1 150 x 1 500
1117     1 150 x 1 750
1120     1 150 x 2 000
1315     1 300 x 1 500
1317     1 300 x 1 750
1320     1 300 x 2 000
1515     1 500 x 1 500
1517     1 500 x 1 750
1520     1 500 x 2 000
1715     1 750 x 1 500
1717     1 750 x 1 750
1720     1 750 x 2 000
2015     2 000 x 1 500
2017     2 000 x 1 750
2020     2 000 x 2 000
