ABES Bollard 001

Street terminal

Ask for a quote

Presentation

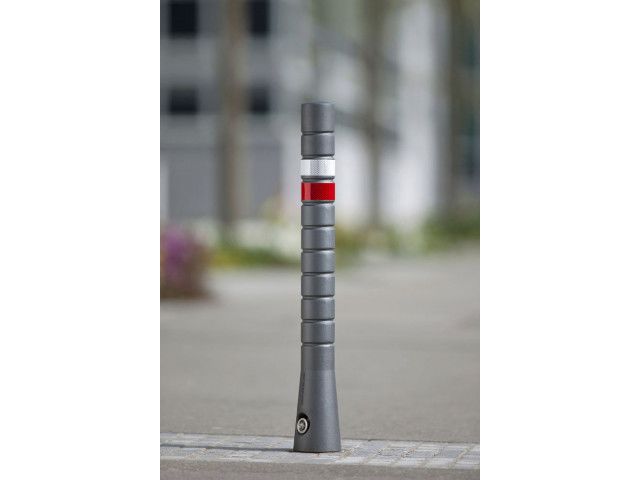

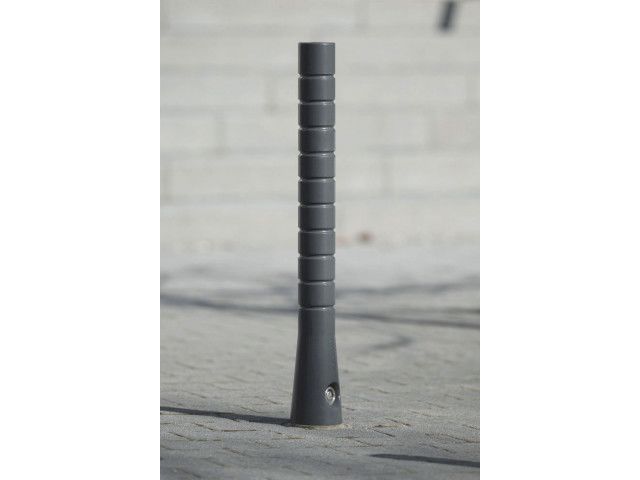

ABES Bollard 001 is a cylindrical bollard with ten circumferential grooves and a conical base. Mounting Removable with 3p-Technology, comprising a ground shell, a junction piece with integrated breaking point, two clamping cones and a hex head bolt. Alternative: concrete embedment. Finish – Powder coating in standard RAL colours or DB 703. – Accessories and special requirements such as different colours, red and white paint, reflective film or powder coating of chains, rings, shackles, etc. in the same colour as the bollard are available on request at a surcharge. Delivery: – The bollard, cast aluminium, powder coated in RAL or DB 703 Glimmer grey – Measurements (H above the ground x Ø in mm): 870 x 85/120 – Ground shell 300 mm (000.001), cast iron, galvanised – Junction piece (000.008), cast iron, galvanised – clamping bolt set, hex head (N1+N2+hex-screw), stainless steel 1.4301 (000.004)

Technical features

Type: for public spaces, for schools, for public buildings, kindergarten Material: cast aluminum Features: fixed mounted, removable with 3p-Technology

Download the complete technical features
